Line Array series
Line Array series
-ML210MKII
Type: Two frequency dual ten inch speaker (birch surface box polyurethane paint)
Driver: 2 low-frequency 10 inch 180 magnetic 75 core voice coils
High pitched 85 magnetic neodymium magnetic 44 core * 2 pieces
Frequency response: 65Hz-20kHz ± 3dB
Carrying capacity: 700w/1400w (Max)
Sensitivity: 97dB
Impedance: 8 Ω
Coverage angle: H90 ° * 15 °
Box size: W * D * H: 650 * 350 * 290mm
Carton packaging: W * D * H: 360 * 420 * 710mm outer dimensions
Net weight: 26kg, gross weight: 28kg
Line Array series

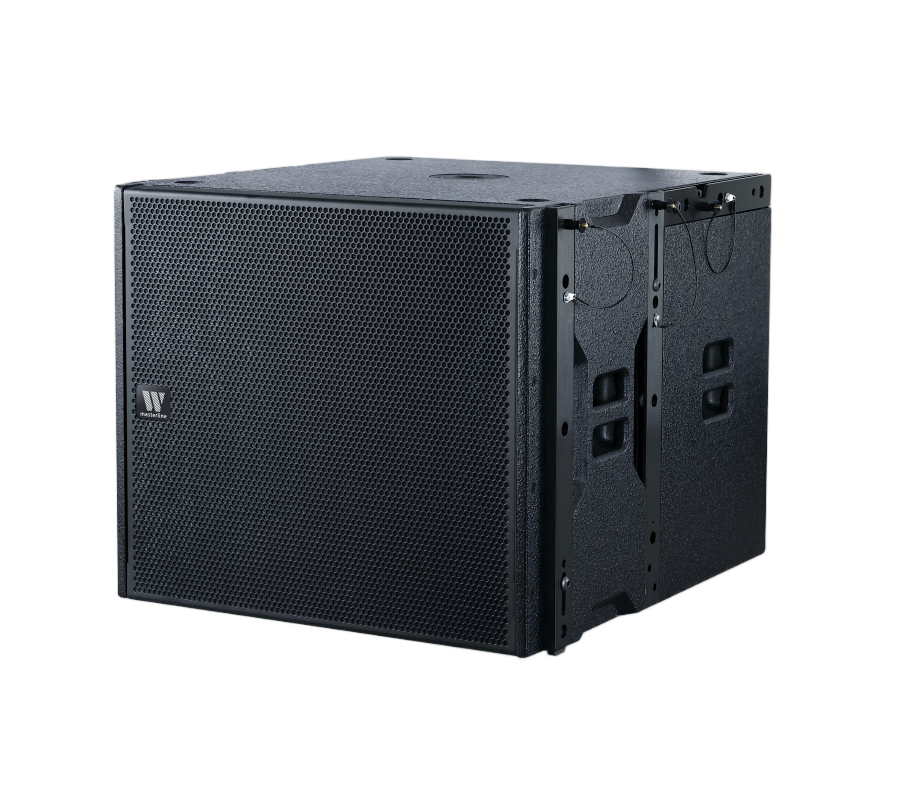

- ML18S
Type: Subwoofer (Birch surface box)
Driver: Bass 18 inch neodymium magnetic 100 core voice coil, imported paper basin
Frequency response: 30Hz-300Hz ± 3dB
Rated power: 650w
Maximum power: 1300w
Sensitivity: 98dB
Impedance: 8 Ω
Box size: W * D * H: 650 * 705 * 560mm
Carton packaging: W * D * H: 725 * 780 * 635mm outer dimensions
Net weight: 50kg, gross weight: 56.4kg
Line Array series
-CX12MKII
Type: Two frequency 12 inch speaker (birch surface box)
Driver: 1 low-frequency 12 inch 190 magnetic 75 core voice coil
High pitched 120 magnetic 44 core * 1 unit
Frequency response: 55Hz-20kHz ± 3dB
Rated power: 400w
Maximum power: 800w
Sensitivity: 95dB Coverage angle: 70 ° x 100 ° (H x V)
Impedance: 8 Ω
Box size: W * D * H: 360 * 340 * 595mm
Carton packaging: W * D * H: 430 * 410 * 660mm outer dimensions
Net weight: 19.1kg, gross weight: 21.2kg
Line Array series
-Q5
Unit Type: 2 x 5.5 “LF/1x 1.4” HF
Frequency range (± 3dB): 80-18000Hz
Rated Power (Program/Peak): 200/800 W
Impedance: 8 Ohm
Coverage Angle (Horizontal x Vertical): 110 ° x 15 °
Sensitivity 1W/1M: 108 (peak)
Maximum sound pressure level (1M): 133 (peak)
Interface: 2 Speakon NL4, quadrupled Net weight (kg): 13kg
Outline size (H x W x D): 190 (H) x 410 (W) x 355 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series

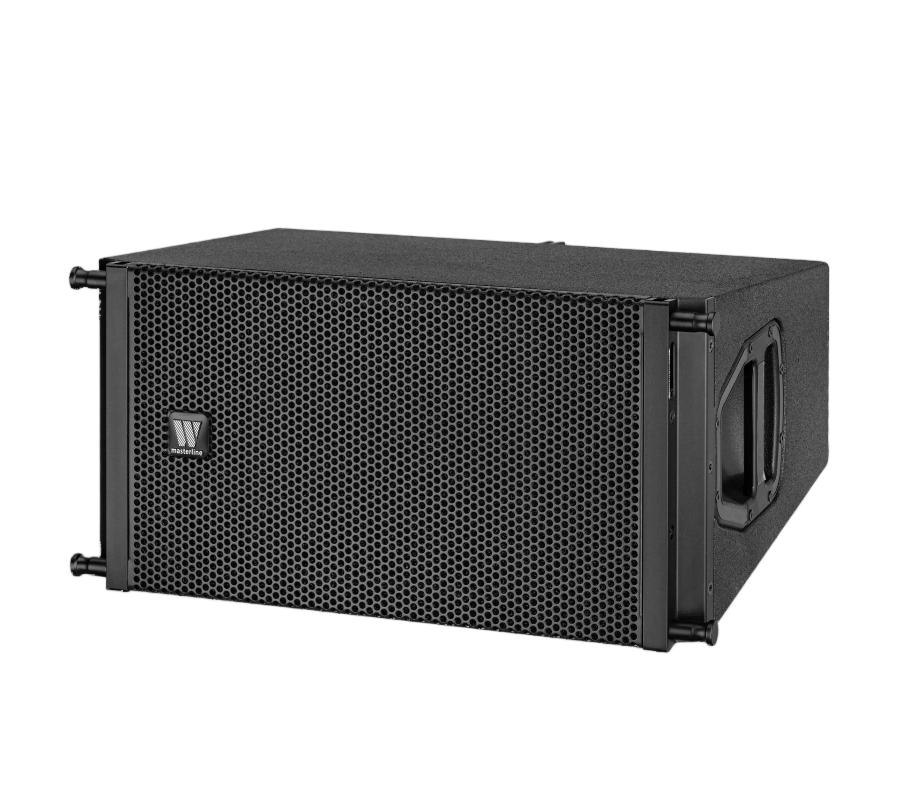

- Q7
Frequency response: 70 Hz~16 kHz (± 3 dB) 60 Hz~18 kHz (-10 dB)
Nominal directivity: 100 ° (H) vertically adjustable
Sensitivity (@ 1W/1m): HF/LF: 112 dB SPL/96 dB SPL
Speaker power: HF/LF: 80W/800W
Impedance: HF/LF: 8/8ohm
Maximum sound pressure level: HF: 138 dB SPL peak/LF: 131 dB SPL peak
Speaker unit:
two × 10 “neodymium magnetic bass (75mm voice coil)
one × 3 “neodymium magnetic compressed tweeter (75mm voice coil) Net weight (kg): 21kg
Physical data:
Connector: 2×4 core Neutrik NL4 speaker base
Connection method:
NL4:1+1-
Material: 15mm, 18mm Baltic birch multi-layer plywood
Surface treatment: black polyurea paint
Mesh: Surface mesh with transparent sound mesh inside
Angle: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 ° adjustable
Outline size (H x W x D): 310 (H) x 579 (W) x 452 (D) mm
Line Array series
-VERA36
Unit Type ：2 x 10″ LF
1 x 8″ MF / 2 x 1.4″ HF
frequency range(±3dB) ：48-18000Hz
Rated Power (Program/Peak) ：1000 / 2000 W LF
800 / 1600 MHF
impedance ：8 Ohm LF
8 Ohm MHF
Coverage Angle (Horizontal x Vertical) ：80 ° 或者 120° x 10°
sensitivity1W/1M ：98 dB LF
110dB MHF
Maximum sound pressure level（1M） ：141dB
Interface ：2 Speakon NL4, quadamped
Pin1 = MHF, Pin2 = LF Net weight（kg): 35kg
Outline size（H x W x D）：310(H) x 700(W) x 580(D) mm
coating ：Polyurea coating ，Colors can be customized to customer’s requirements
Optional ：RAL Color options
Line Array series
- 10XLCD
Technical parameters:
Frequency response: 80 Hz~18 kHz (± 3dB) 60 Hz~20 kHz (-10dB)
Nominal directivity: 100 ° (H) 10 ° (V)
Sensitivity (@ 1W/1m): 104 dB SPL
Speaker power: 400W
Impedance: 8 ohms
Maximum sound pressure level: 129 dB SPL peak/135 dB SPL peak
Speaker unit: 1 × 10 “Bass (75mm voice coil) 1 × 3 “compressed treble (75mm voice coil) Net weight (kg): 14.5kg
Physical data:
Connector: 2×4 core Neutrik NL4 speaker base
Connection method: 1+1-
Material: 15mm, 18mm Baltic birch multi-layer plywood
Surface treatment: black polyurea paint
Grid mesh: black square hole steel mesh and transparent speaker fabric
Angle: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 °
Outline size (H x W x D): 304 (H) * 684 (W) * 340 (D) mm
Line Array series
- 12XLCD
Unit Type: 1 x 12 “LF/1x 1.4” HF
Frequency range (± 3dB): 67-18000Hz
Rated Power (Program/Peak): 400/1600 W
Impedance: 8 Ohm
Coverage Angle (Horizontal x Vertical): 110 ° x 15 °
Sensitivity 1W/1M: 110 (peak)
Maximum sound pressure level (1M): 135 (peak)
Interface: 2 Speakon NL4, quadrupled Net weight (kg): 21kg
Outline size (H x W x D): 310 (H) x 664 (W) x 520 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-24S
Available bandwidth (-5db) 55 Hz -18 kHz
Maximum SPL1 138db
Coverage angle (-6 dB) 75 ° symmetrical x 45 ° rotatable Can rotate
Unit Type Bass LF: 2 × 12 “, bass reflex, high pitch HF: 1 × 3 “, Diaphragm compression driver, Polysilicon waveguide
Nominal impedance: Bass LF: 4 Ω High HF: 8 Ω
Rated Power (Program/Peak): Bass LF: 500 W High HF: 80 W
Connector: 2 × Speakon NL4 Net weight (kg): 33kg
Lifting member connecting rod
Size Outline size: Size (H x W x D) 800 x 410 x 420 mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-A15 Focus
Available bandwidth (-10db) 50Hz -20KHz
Maximum SPL1 142db
Coverage angle (-6 dB) Shell directionality: 10 ° Waveguide directionality: 70 °/110 ° Symmetric or 90 ° Asymmetric
Unit Type Bass LF: 1 × 15 ″, bass reflex, high pitch HF: 1 × 3 ″, Diaphragm compression driver, Polysilicon waveguide
Nominal impedance: Low frequency LF: 8 Ω High frequency HF: 8 Ω
Rated Power (Program/Peak): Bass LF: 600 W High HF: 100 W
Connector: 2 × Speakon NL4
Lifting member connecting rod
Outline size: width * height * depth 762 mm, 427 mm, 490 mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
- A15Wide
Available bandwidth (-10db) 50Hz -20KHz
Maximum SPL1 142db
Coverage angle (-6 dB) Shell directionality: 30 °, waveguide directionality: 70 °/110 ° Symmetric or 90 ° Asymmetric
Unit Type Bass LF: 1 × 15 ″, bass reflex, high pitch HF: 1 × 3 ″, Diaphragm compression driver, Polysilicon waveguide
Nominal impedance: Low frequency LF: 8 Ω High frequency HF: 8 Ω
Rated Power (Program/Peak): Bass LF: 600 W High HF: 100 W
Connector: 2 × Speakon NL4
Lifting member connecting rod
Outline size: width * height * depth 762 mm, 424 mm/182 mm, 494 mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series

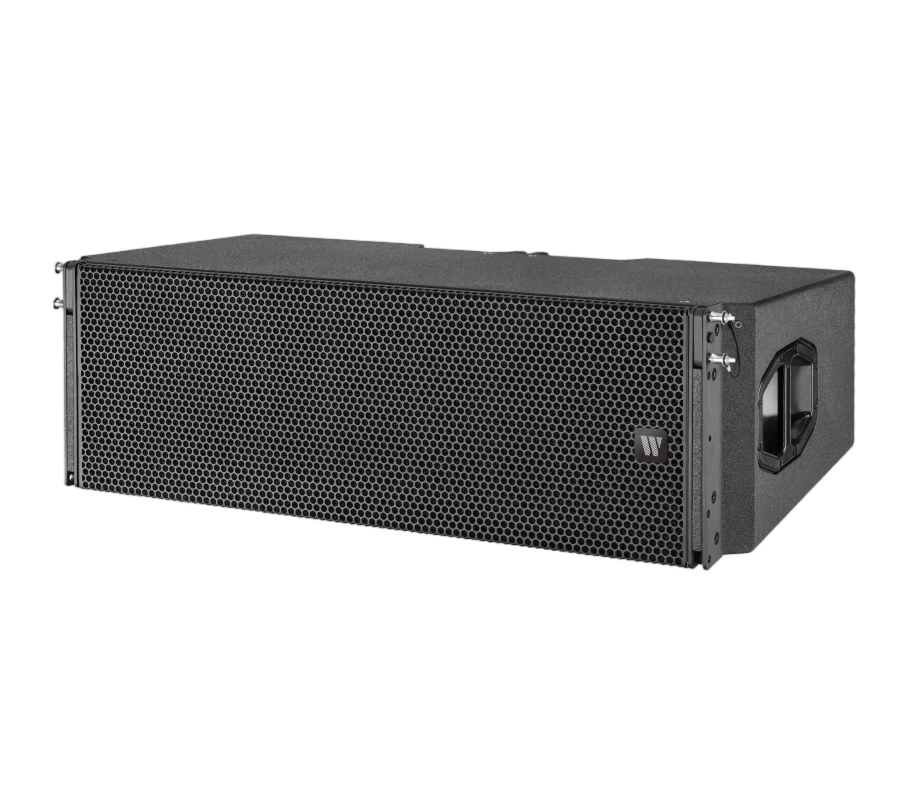

-J8
Unit Type: 2 x 12 ″ LF
1 x 10 ″ MF/2 x 1.4 ″ HF outlet compression driver
Frequency range (± 5dB): 48 Hz – 17 kHz
Frequency response (-5 dB CUT mode): 85 Hz – 17 kHz
Rated Power (Program/Peak): 500/2000 W.LF 200/800 W.HF
Impedance: 6 Ω (LF)/12 Ω (MHF)
Coverage Angle (Horizontal x Vertical): 80 ° x 7 ° Splay angle set to 0-7 ° (1 ° increment)
Sensitivity 1W/1M: 130 (peak)
Maximum sound pressure level (1M): 145 (peak)
Interface: 2 Speakon NL4, quadramped
Outline size (H x W x D): 360 (H) x 1100 (W) x 570 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-S218+
Unit Type: 2x 18 ″
Frequency range (± 3dB): 35Hz – 150 Hz Power (program/peak): 2000/8000 W 18 ″
Impedance: 4 Ohm
Directionality (horizontal x vertical):
Sensitivity 1W/1M: 106 dB
Maximum sound pressure level (1M): 139dB
Interface: 2 Speakon NL4
Outline size (H x W x D): 560 (H) x 1066 (W) x 780 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series

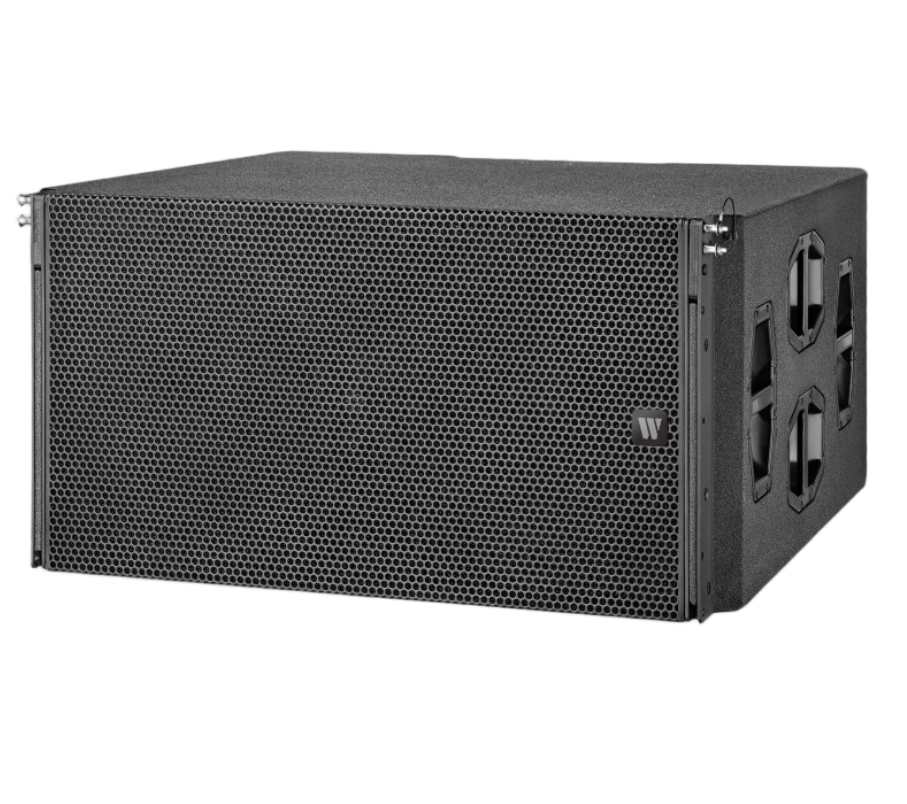

-J-SUB
Unit Type: 2 x 18 “front/1 x 18” rear
Frequency range (± 5dB): 32 – 100Hz
Frequency response (-5dB INFRA mode): 32-70Hz Power (program/peak): 800/3200 W
Rear power processing capacity (RMS/peak 10 ms) 400/1600 W
Impedance: 4 Ω (positive)/8 Ω (back)
Directionality (horizontal x vertical): Heart/Supercenter Direction
Sensitivity 1W/1M: 120dB
Maximum sound pressure level (1M): 139dB
Interface: 2 Speakon NL4
Outline size (H x W x D): 540 (H) x 1100 (W) x 945 2/1063 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series

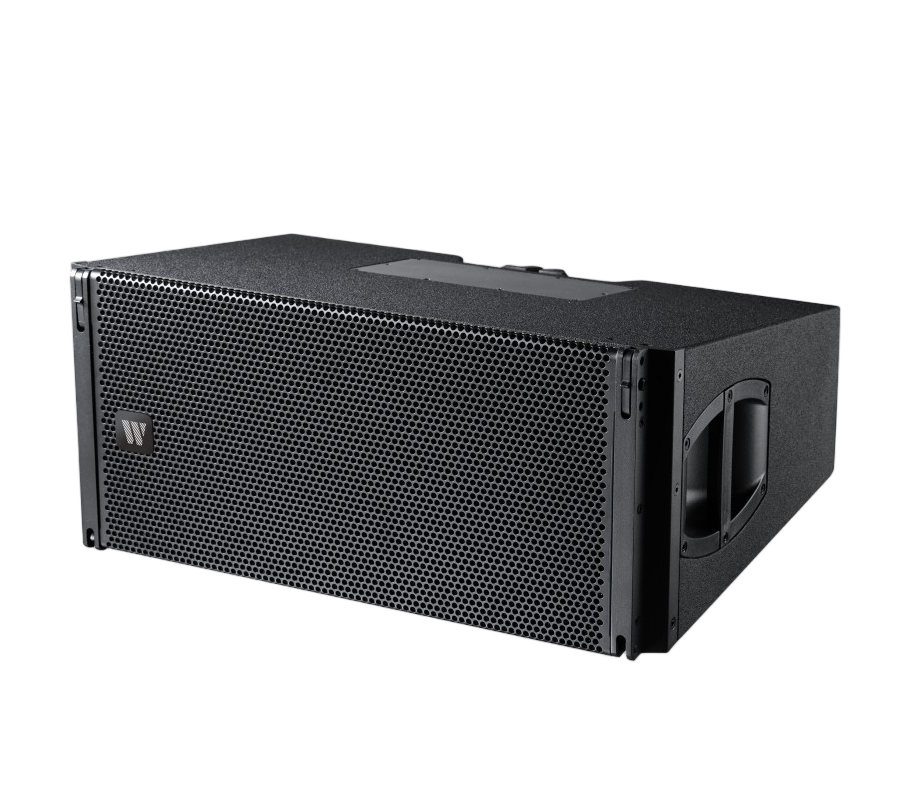

-V8
Unit Type: 2 x 10 ″ LF
1 x 8″ MF / 2 x 1.4″ HF
Frequency range (± 3dB): 67-18000Hz
Rated Power (Program/Peak): 1000/2000 W LF
800 / 1600 MHF
Impedance: 8 Ohm LF 16 Ohm MID 16 Ohm HF
Coverage Angle (Horizontal x Vertical): 80 ° x 10 °
Sensitivity 1W/1M: 130 (peak)
Maximum sound pressure level (1M): 142 (peak)
Interface: 2 Speakon NL4, quadramped
Outline size (H x W x D): 310 (H) x 700 (W) x 460 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series

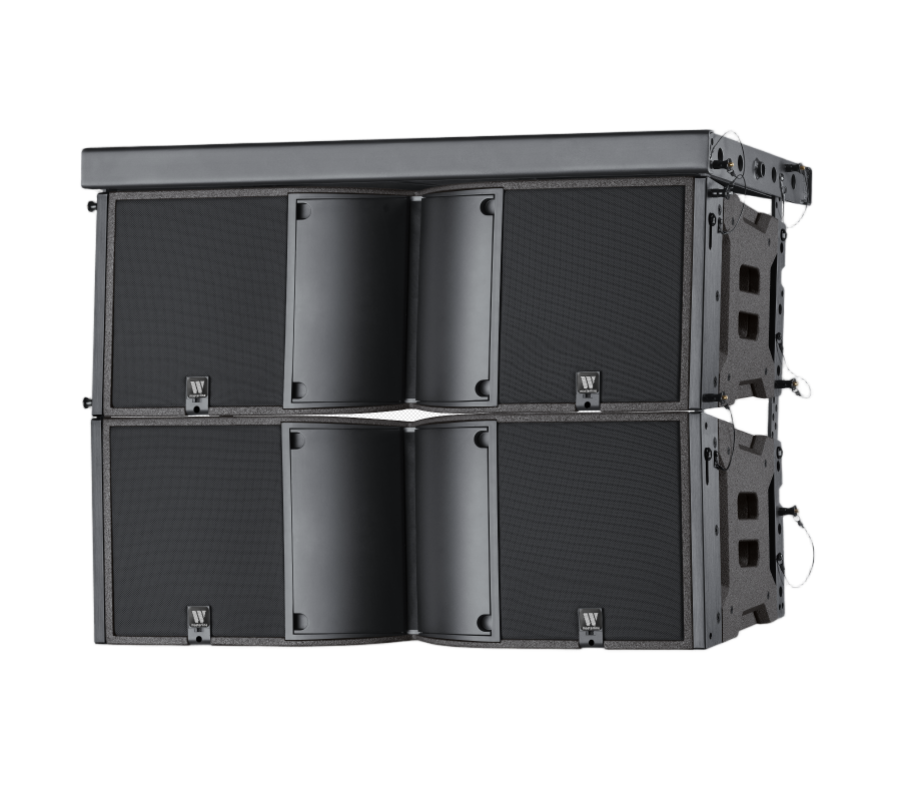

- K3
Unit Type: 2 x 12 ″ LF 1 x 4 ″ HF Outlet Compression Driver
Frequency range (± 5dB): 48 Hz – 20kHz
Frequency response (-5 dB CUT mode): 85 Hz 20kHz
Rated Power (Program/Peak): 500/2000 W.LF 200/800 W.HF
Impedance: 8 Ω (LF)/8 Ω (HF)
Coverage Angle (Horizontal x Vertical): Horizontal: 70 °/110 ° Symmetric or 90 ° Asymmetric
Sensitivity 1W/1M: 138 (peak)
Maximum sound pressure level (1M): 143 (peak)
Interface: 2 Speakon NL4, squared weight (net weight): 43 kg
Outline size (W, H, D): 950 mm, 355 mm, 402 mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-KARA
Unit Type: 2 x 8 ″ LF/2 x 1.4 ″ HF
Frequency range (± 3dB): 55-18000Hz
Rated Power (Program/Peak): 450/1800 W LF
80 / 3200 MHF
Impedance: 8 Ohm LF 8 Ohm HF
Coverage Angle (Horizontal x Vertical): 110 ° x 10 °
Sensitivity 1W/1M: 132dB
Maximum sound pressure level (1M): 141dB
Interface: 2 Speakon NL4, quadramped
Outline size (H x W x D): 250/164 (H) x 730 (W) x 482 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-L2
Unit composition 4 × 4″LF+`1*1″HI
Rated power: 275W (AES), peak power: 550W (peak)
Frequency response 100Hz-20KH Impedance: 8 Ω
Projection angle 120 × 25°<H × V>
Sensitivity (1W/1M) 118dB
Peak Maximum Sound Pressure Level 128dB
Unit composition: 4 × 4″LF+`1*1″HI
Connect 2 × Speakon NL4
Box size Dimension (H × W × D height * width * depth): 659 * 138.7 * 128mm
Line Array series

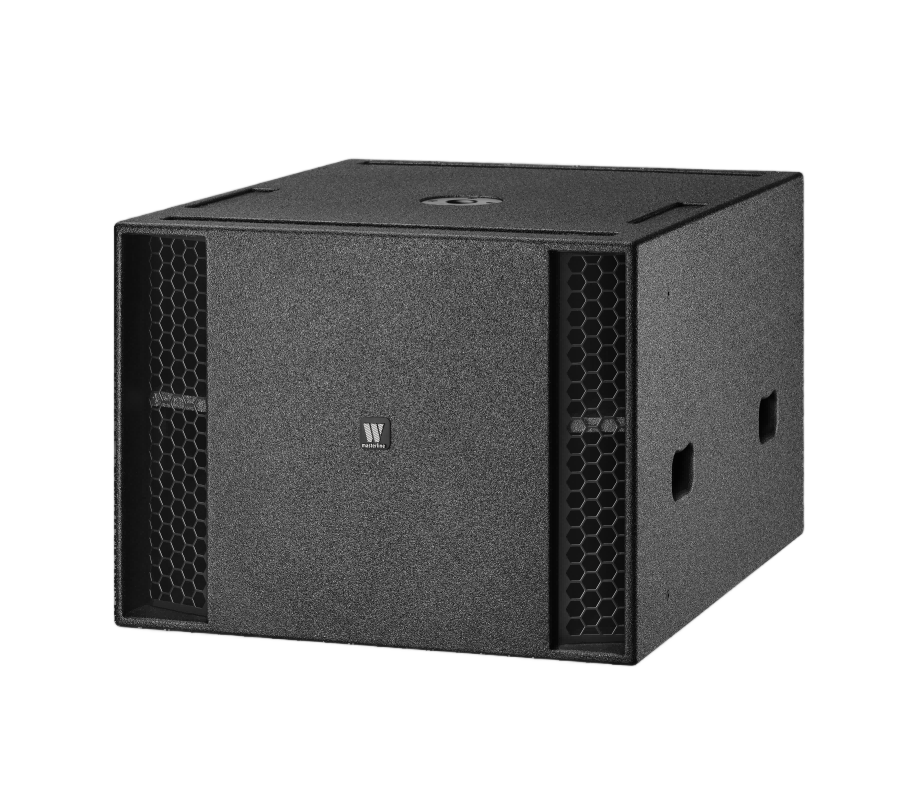

-S18+
Unit Type: 1x 18 ″
Frequency range (± 3dB): 40Hz – 120 Hz Power (program/peak): 600/1500 W 18 ″
Impedance: 8 Ohm
Sensitivity 1W/1M: 106 dB
Maximum sound pressure level (1M): 130.5dB
Interface: 2 Speakon NL4
Outline size (H x W x D): 560 (H) x 1066 (W) x 780 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-18SUB
Sensitivity (@ 1W/1m): 99 dB SPL
Speaker power: 1500W
Impedance: 8 ohms
Maximum sound pressure level: 130 dB/136 dB SPL peak
Speaker unit: 1 x 18 ″ (100mm voice coil) neodymium magnetic bass unit
Physical data:
Connector: 2 × 4-core WP4 speaker base, 2 × 4-core Neutrik NL4 speaker base
Connection method: WP4:1-2+NL4:1+1-
Material: 18mm, 24mm Baltic birch multi-layer plywood
Surface treatment: black polyurea paint
Grid mesh: surface mesh covered with sound permeable mesh fabric
Outline size: W (width) x H (height) x D (depth): 750 x 540 x 707 mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-L3
Unit composition 8 × 4″LF+`1*1″HI
Rated power: 360W (AES), peak power: 1440W (peak)
Frequency response 90Hz-18KH Impedance: 4 Ω
Projection angle 120 × 25°<H × V>
Sensitivity (1W/1M) 118dB
Peak Maximum Sound Pressure Level 128dB
Unit composition: 8 × 4″LF+`1*1″HI
Connect 2 × Speakon NL4
Box size Dimension (H × W × D height * width * depth): 1130 * 138.7 * 128mm
Line Array series
-Y8
Unit Type: 2 x 8 ″ LF 1 x 1.4 ″ (horn) HF
Frequency range (± 3dB): 65-18000Hz
Rated Power (Program/Peak): 400/1600 W LF
60 / 2400 MHF
Impedance: 8 Ohm LF 16 Ohm MID 16 Ohm HF
Coverage Angle (Horizontal x Vertical): 80 ° x 14 °
Sensitivity 1W/1M: 134 (peak)
Maximum sound pressure level (1M): 142 (peak)
Interface: 2 Speakon NL4, quadramped
Outline size (H x W x D): 257 (H) x 630 (W) x 375 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-B22-SUB
Unit Type: 2x 18 ″
Frequency range (± 3dB): 35 Hz – 150 Hz Power (program/peak): 1500/6000 W
Impedance: 4 Ohm
Directionality (horizontal x vertical):
Sensitivity 1W/1M: 125 dB
Maximum sound pressure level (1M): 140dB
Interface: 2 Speakon NL4
Outline size (H x W x D): 580 (H) x 1160 (W) x 920 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-VSUB
Unit Type: 1 x 18 “front/1 x 12” rear
Frequency range (± 3dB): 33 – 120 Hz 1000/2000 W L Power (program/peak): 2400/4800 W 18 ″ 2000/4000 W 12 ″
Impedance: 8 Ohm 18 ″ 8 Ohm 12 ″
Directionality (horizontal x vertical): Heart/Supercenter Direction
Sensitivity 1W/1M: 99 dB
Maximum sound pressure level (1M): 134dB
Interface: 2 Speakon NL4, biamped Pin1=12 ″, Pin2=18 ″
Outline size (H x W x D): 606 (H) x 700 (W) x 800 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
Line Array series
-YSUB
Unit Type: 1 x 18 “front/1 x 12” rear
Frequency range (± 3dB): 36 – 120 Hz Power (program/peak): 600/2400 W 18 ″ 400/1600 W 12 ″
Impedance: 8 Ohm 18 ″ 8 Ohm 12 ″
Directionality (horizontal x vertical): Heart/Supercenter Direction
Sensitivity 1W/1M: 128 dB
Maximum sound pressure level (1M): 134dB
Interface: 2 Speakon NL4,
Outline size (H x W x D): 500 (H) x 630 (W) x 700/804 (D) mm
Coating: Polyurea coating, colors can be customized to customer’s requirements
Optional: RAL Color options (Warnex structural paint)
