subwoofer series
subwoofer series

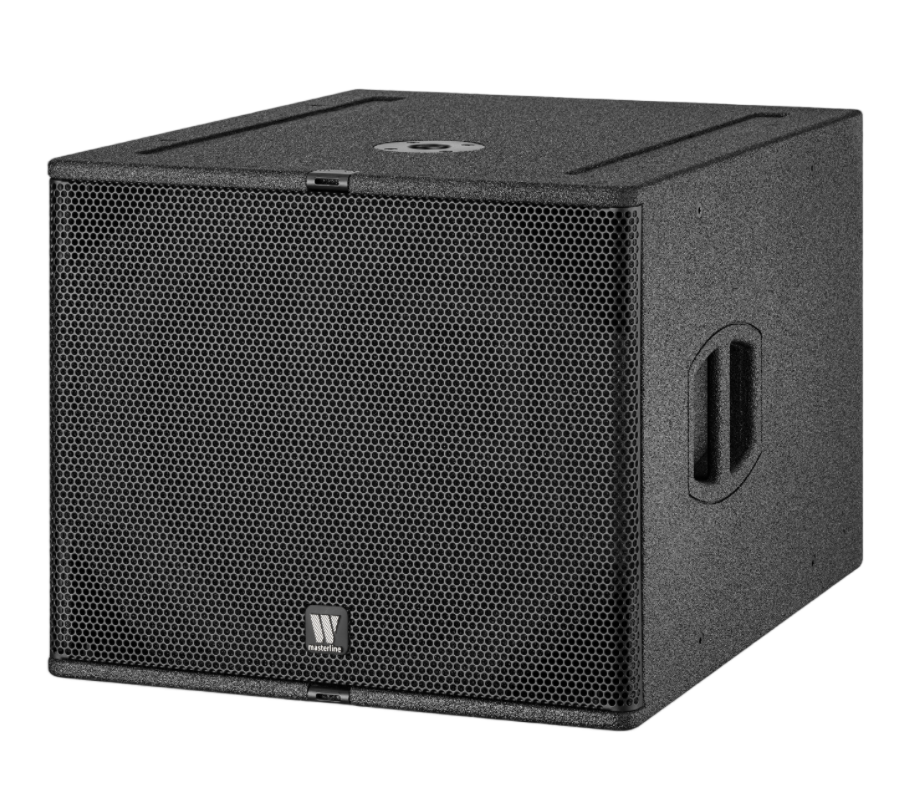

-B16
Unit Type: 1x 18″
Frequency range (±3dB): 35 Hz-150 Hz Power: 1000 / 4000 W
Resistance: 8 Ω
Sensitivity: 106 dB
Maximum loudness class: 130.5dB
Interface: 2 Speakon NL4 Net weight: 43kg
Dimensions (height x width x depth): 500x580x700 mm
Coating: polyurea coating, (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series
-B22
Unit type: 2x 18″
Frequency range: 35 Hz-150 Hz Power: 1500 / 6000 W
Resistance: 4Ω
Sensitivity: 125 dB
Loudest loudness class: 140dB
Interface: 2 Speakon NL4 Net weight: 106kg
External dimensions (height x width x depth): 580 x 1160 x 920 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series

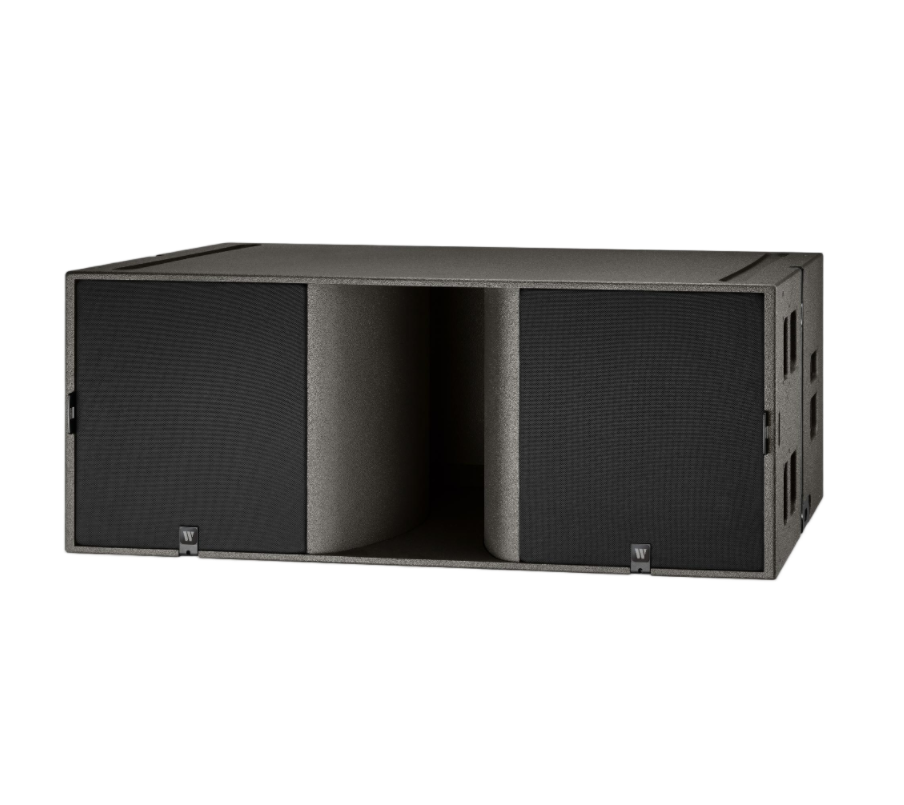

-KS28
Unit type: 2x 18″
Frequency range: 30 Hz-100 Hz Power: 2000 / 8000 W
Resistance: 4 Ω
Sensitivity: 107 dB
Loudest loudness class: 143dB
Interface: 2 Speakon NL4 Net weight: 79kg
External dimensions (height x width x depth): 565 x1351 x 719mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series

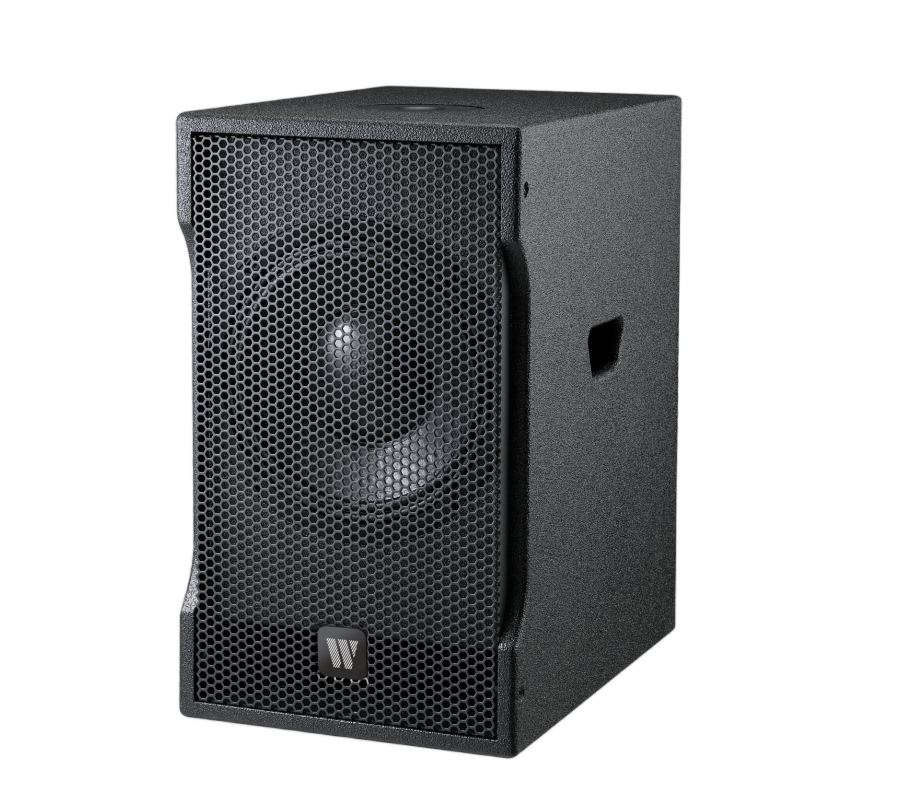

-CS10S
Unit type: 1x 10″
Frequency range: 45Hz-130 Hz Power (program/peak): 200 / 400 W 10″
Resistance: 8 Ω
Sensitivity: 102 dB
Maximum loudness class (1M): 123dB
Interface: 2 Speakon NL4 net weight: 19kg
External dimensions (height x width x depth): 495 x 288 x 427 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: RAL color options (x structural paint)
subwoofer series
-CS118
Unit Type: 1x 18″
Frequency range (±3dB): 39 Hz-180 Hz Power): 1000 / 4000 W impedance: 8 Ohm
Sensitivity: 106 dB
Maximum loudness class: 130.5dB
Interface: 2 Speakon NL4 Net weight: 53kg
Dimensions (height x width x depth): 566 x 663 x 720 mm
Coating: polyurea coating, (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series
-CS218
Unit Type: 2x 18″
Frequency range: 35Hz-180 Hz Power (program/peak): 2000 / 8000 W
Resistance: 4 Ω
Sensitivity: 106 dB
Loudest loudness class: 139dB
Interface: 2 Speakon NL4 Net weight: 86kg
External dimensions (height x width x depth): 638 x 1066 x 724 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series
-X110N
Unit type: 1x 10″
Frequency range (±3dB): 45Hz-130 Hz Power (program/peak): 200 / 400 W 10″
Resistance: 8 Ω
Sensitivity: 102 dB
Maximum loudness class (1M): 123dB
Interface: 2 Speakon NL4
External dimensions (height x width x depth): 300 (H) x 416 (W) x 666 (D) mm
Coating: polyurea coating, (color can be customized according to customer requirements)
Option: RAL color options (structural paint)
subwoofer series

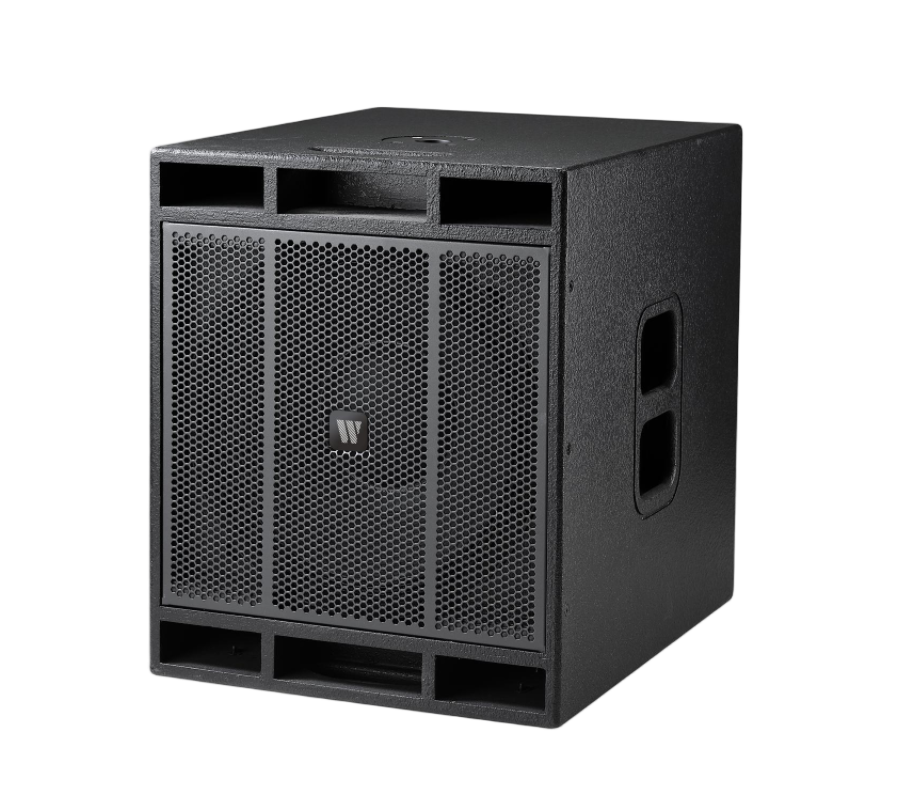

-X115N
Unit type: 1x 15″
Frequency range (±3dB): 35Hz-150 Hz Power (program/peak): 500 / 2000 W
Resistance: 8 Ω
Sensitivity: 102 dB
Loudest loudness class: 125dB
Interface: 2 Speakon NL4 Net weight: 32.5kg
Dimensions (height x width x depth): 550 x 450 x 550 (D) mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: RAL color options (structural paint)
subwoofer series

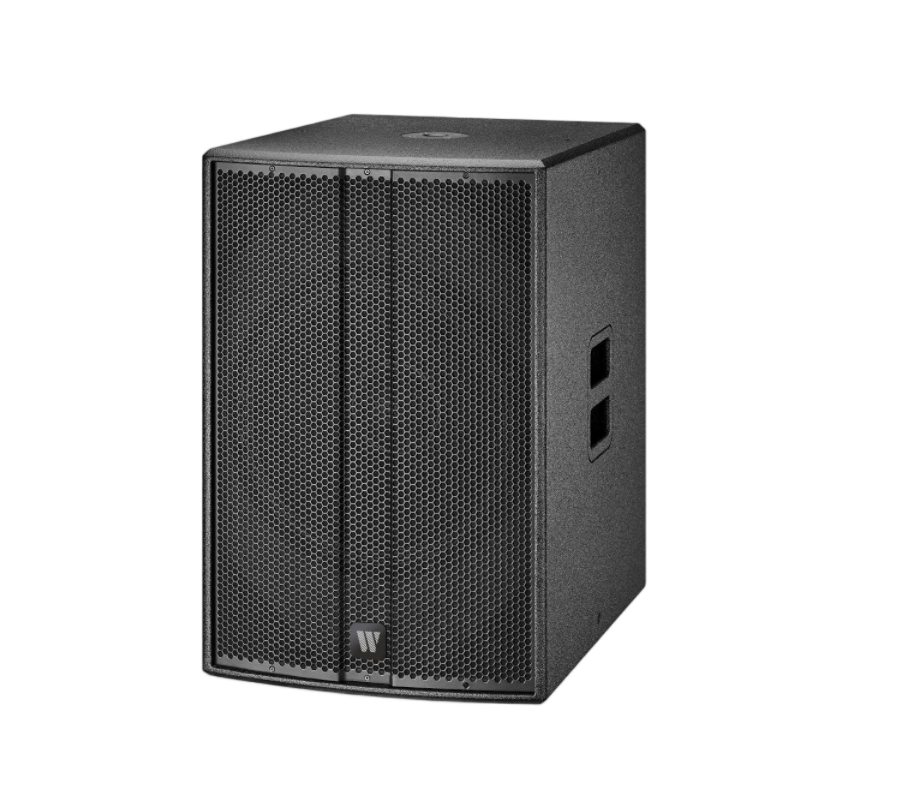

-X118N
Unit type: 1x 18″
Frequency range: 35Hz-150 Hz Power: 800 / 3200 W
Resistance: 8 Ω
Sensitivity: 102 dB
Loudest loudness class: 124dB
Interface: 2 Speakon NL4 net weight: 6kg
External dimensions (height x width x depth): 779.5 x 524 x 640 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)

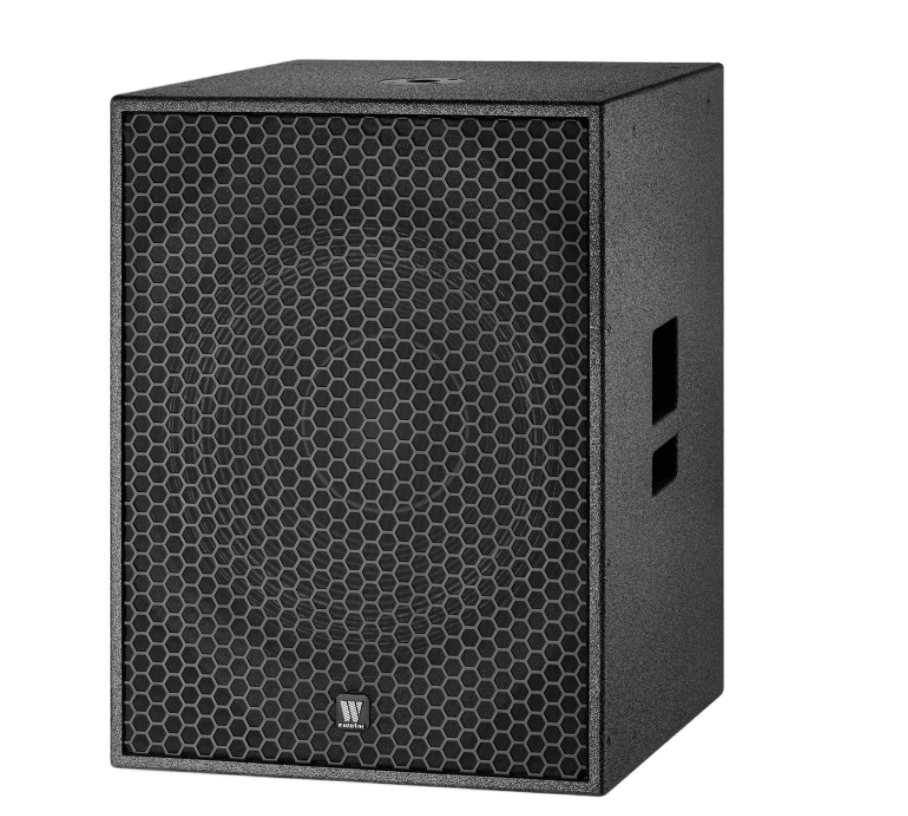

subwoofer series
-SX21
Unit Type: 1x 21″
Frequency range: 30 Hz-300 Hz Power: 2000 / 8000 W
Resistance: 8Ω
Sensitivity: 102 dB
Loudest loudness class: 135dB
Interface: 2 Speakon NL4 Net weight: 56kg
External dimensions (height x width x depth): 779.5 (H) x 600 (W) x 600 (D) mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series

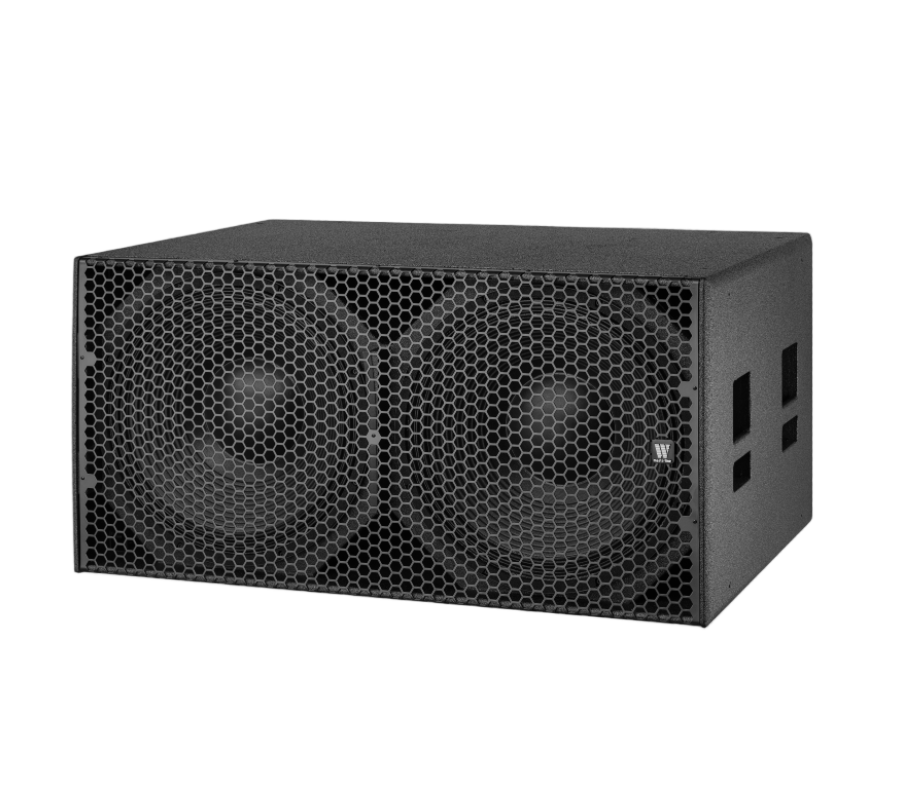

-SX221
Unit Type: 2x 21″
Frequency range: 35 Hz-150 Hz Power: 4000 / 16000 W
Impedance: 4 OΩ
Sensitivity: 125 dB
Loudest loudness class: 144dB
Interface: 2 Speakon NL4 net weight: 140kg
Dimensions (height x width x depth): 60 x 1200 x 800 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)

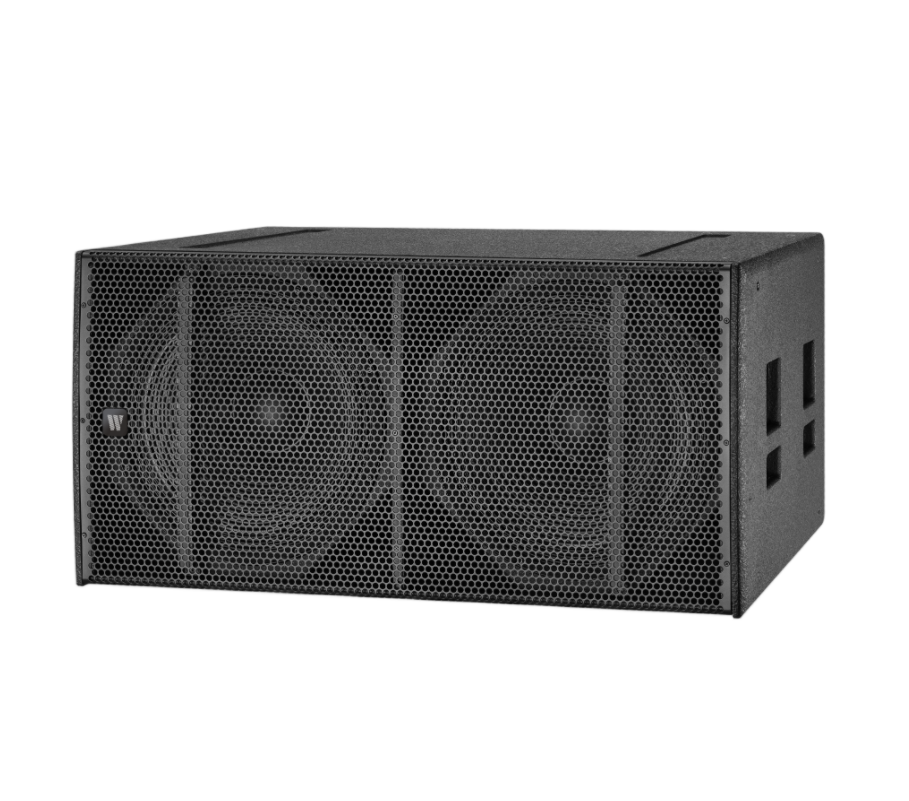

subwoofer series
-SX218
Unit Type: 2x 18″
Frequency range: 35Hz-150 Hz Power: 2000 / 8000 W
Resistance: 4Ω
Sensitivity: 106 dB
Loudest loudness class: 144dB
Interface: 2 Speakon NL4 net weight: 84kg
External dimensions (height x width x depth): 537 x 1093 x 792 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series

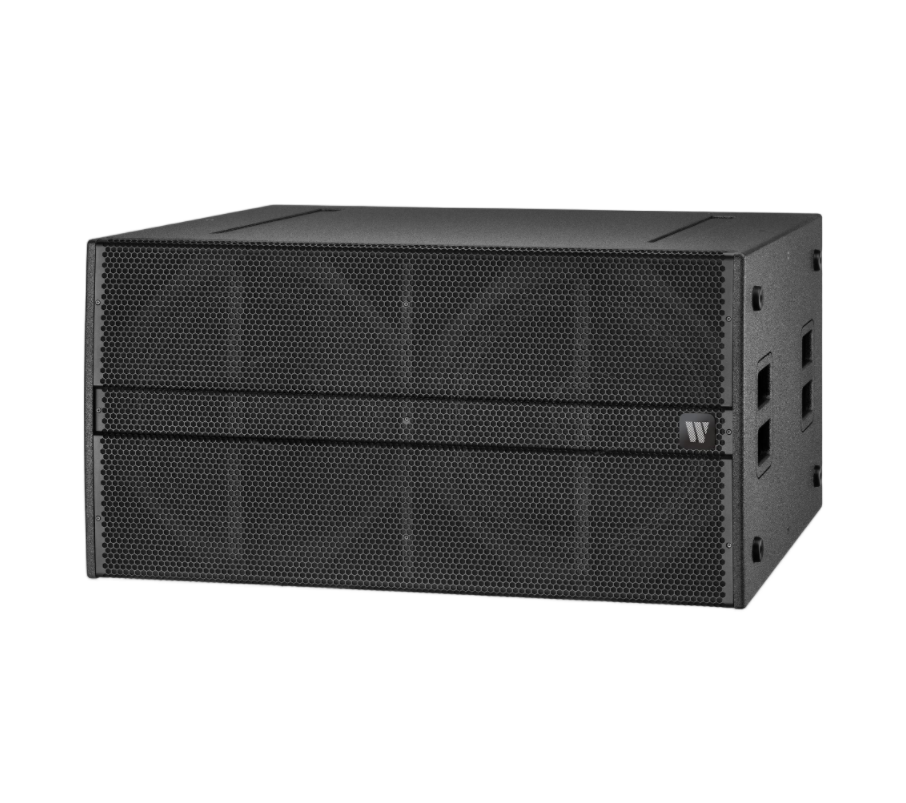

-X218N
Unit type: 2x 18″
Frequency range (±3dB): 30Hz-250 Hz Power: 2000 / 8000 W
Resistance: 4 Ω
Sensitivity: 98 dB
Designated effective band sound pressure level (1M):133.8dB
Interface: 2 Speakon NL4 net weight: 84kg
External dimensions (height x width x depth): 571 x 1070x 780 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series
-S18+
Unit type: 1x 18″
Frequency range: 40Hz-120 Hz Power: 600 / 1500 W
Resistance: 8 Ω
Sensitivity: 106 dB
Maximum loudness class: 130.5dB
Interface: 2 Speakon NL4 net weight: 45kg
External dimensions (height x width x depth): 560 x 1066 x 780 mm
Coating: polyurea coating (color can be customized according to customer requirements)
Option: Color optional (structural paint)
subwoofer series

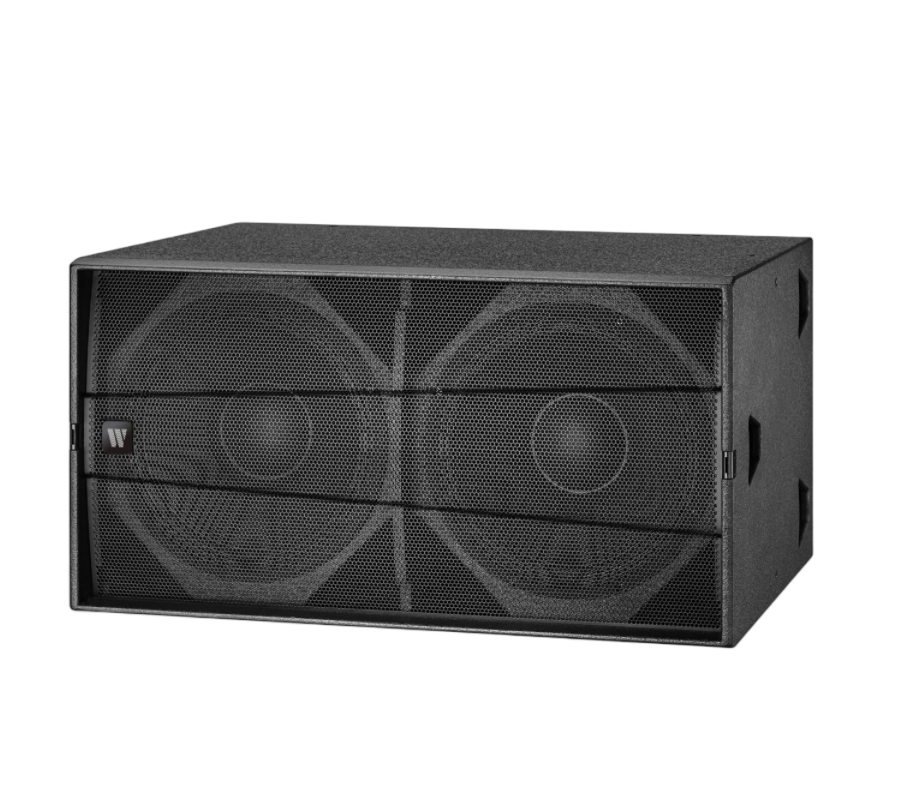

-S218+
Unit type: 2x 18″
Frequency range: 35Hz-150 Hz Power (program/peak): 2000 / 8000 W Impedance: 4 Ω
Sensitivity: 106 dB
Loudest loudness class: 139dB
Interface: 2 Speakon NL4 Net weight: 84kg
External dimensions (height x width x depth): 560 x 1066 x 780 mm
Coating: Polyurea coating (color can be customized according to customer requirements
Option: Color optional (structural paint)
