Entertainment Series
Entertainment Series
-AP12
Two-way 12 “full range speaker 12”
Rated power: 450W (AES)
Peak power 1800W (peak)
Frequency response: 50Hz-18KHz
Resistance: 8Ω
Projection Angle:(rotatable) 80×50 <H×V>
Sensitivity: 102dB
Peak maximum sound pressure level: 130dB
Unit configuration: 1×12″ bass Low + 1×1.75 (44mm)
Connect: 2×Speakon NL4
Landed weight: 23.5kg
Case size: height 575mm × width 385mm × depth 430mm
Entertainment Series

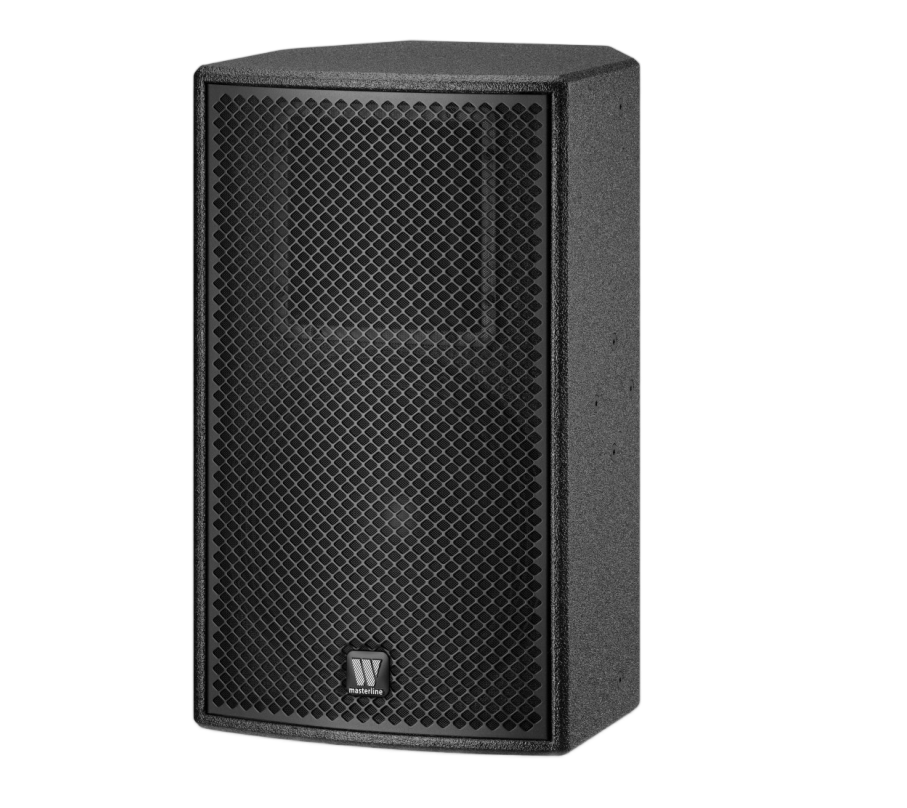

-AP13
Two-way 13.5 “full-range speaker 13.5”
Rated power: 575W (AES)
Peak power: 2300W (peak)
Frequency response: 42Hz-20KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×50 <H×V>
Sensitivity: 106dB
Peak maximum sound pressure level: 134dB
Unit composition: LF: 1×13 “Voice coil: 3” HF: 1×1.4 “Voice coil: 3”
Connect: 2×Speakon NL4
Net weight: 28kg
Case size: height 648mm × width 397mm × depth 420mm”
Entertainment Series
-AP15
Two-way 15 “full range speaker 15″”
Rated power: 680W (AES),
Peak power: 2720W (peak)
Frequency response: 55Hz-18KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×50 <H×V>
Sensitivity (1W/1M): 99dB
Peak maximum sound pressure level: 126dB
Unit composition: LF: 1×15 “(380mm)/ 4” (100mm)
Voice coil, HF: 1×1.4 “Voice coil: 3” (Horn)
linkage ：2×SpeakonNL4
Lift: 32kg
Case dimensions: Height 429mm x height 690mm x depth 414mm
Entertainment Series

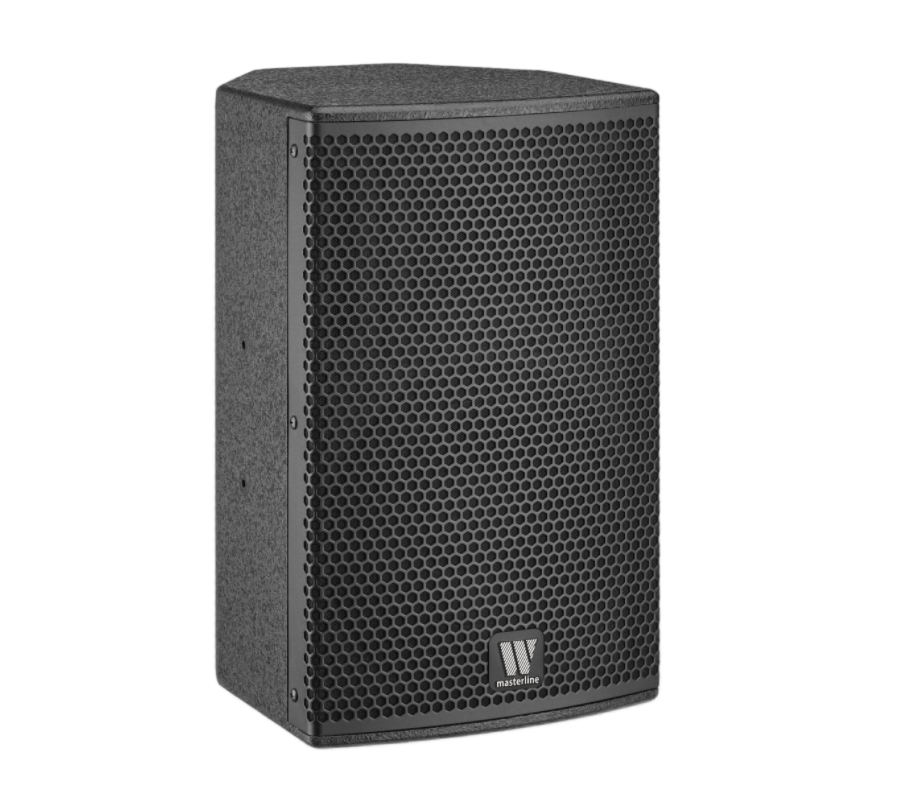

-K08S
Technical specifications for 8 inch front inverted speaker
Type: two-way full frequency front flip speaker
Drivers: 8-inch bass with 120mm 38-core voice coil, 80mm tweeter with 25-core voice coil
Frequency response: 65Hz-20kHz ±3DB
Rated power: 120w
Maximum power: 240w
Sensitivity: 92dB
Resistance: 8Ω
Size (W×D×H) 245*260*400MM
Net weight: 8.5kg
Entertainment Series
-K10S
qualification
Type: two-way full frequency rear inverted double kidney speaker
Drivers: 10-inch bass with 156-coil, 65-core voice coil; 90-coil, 34-core tweeter
Frequency range (-10dB): 50 Hz-20 kHz
Rated power: 300w
Maximum power: 600w
Sensitivity (lw@1m): 95dB SPL
Resistance: 8Ω
Size (W×D×H): 300*340*535MM
Net weight: 14.8kg
Entertainment Series

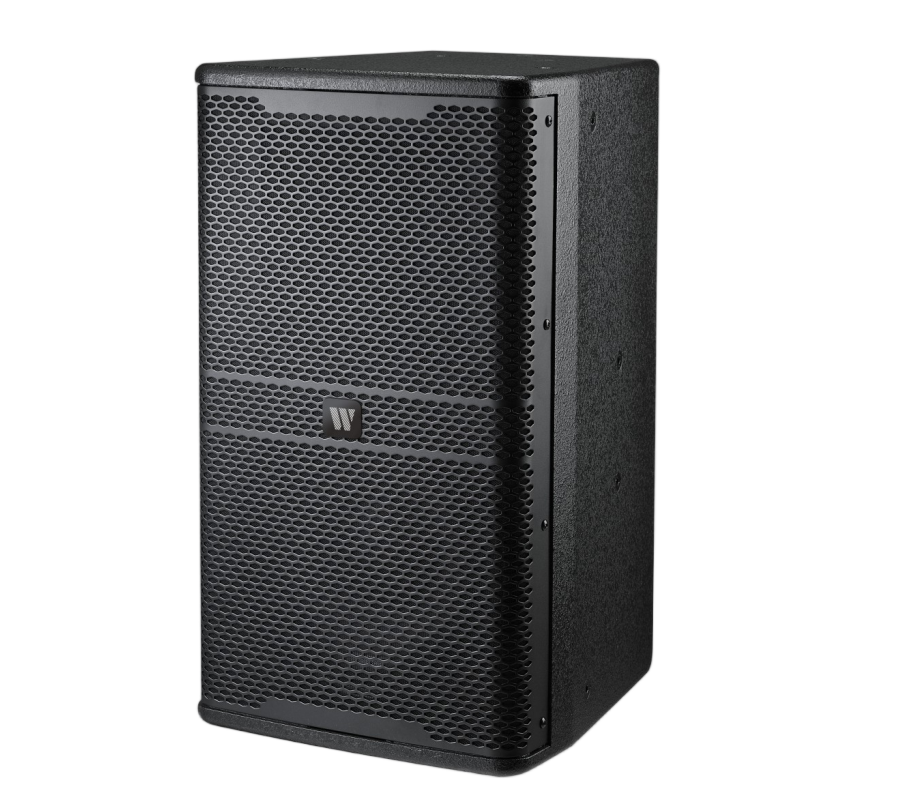

-K12S
qualification
Type: two-way full frequency rear inverted double kidney speaker
Drivers: 12-inch bass with 190 magnetic 75-core voice coil, 120 magnetic 44-core tweeter
Frequency range (-10dB) 47 Hz-20 kHz
Rated power: 350w
Maximum power: 700w
Sensitivity (lw@1m): 97.5dB SPL
Resistance: 8Ω
Size (W×D×H): 360*385*595MM
Net weight: 25kg
Entertainment Series
-LAMPOW1
Two-way 10 “full range speaker 10”
Rated power: 300W (AES)
Peak power 1200W (peak)
Frequency response 68Hz-18KHz
Impedance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Sensitivity (1W/1M): 97dB
Peak maximum sound pressure level: 125dB
Unit configuration: 1×10″ bass + 1×1.4 (36MM) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 23kg
Case size: height 533mm × width 300mm × depth 348mm
Entertainment Series

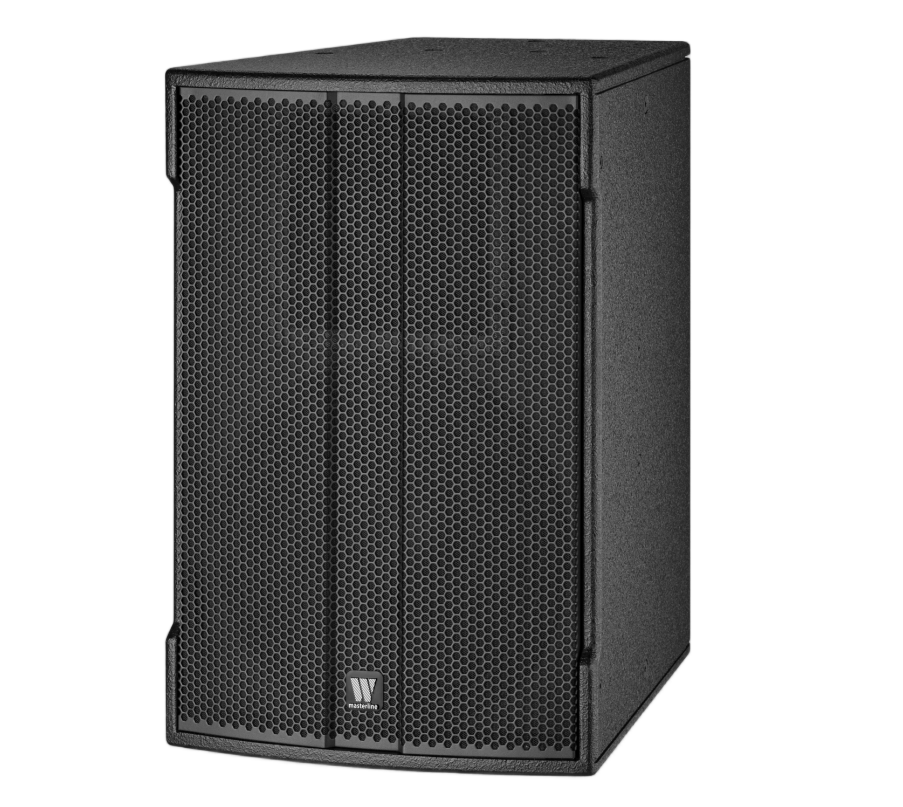

-LAMPOW2
Two-way 12 “full range speaker 12”
Rated power: 450W (AES), peak power: 1800W (peak)
Frequency response: 50Hz-18KHz impedance: 8Ω
Projection Angle (rotatable): 80×50 <H×V>
Sensitivity (1W/1M): 102dB
Peak maximum sound pressure level: 130dB
Unit configuration: 1×12″ bass Low + 1×1.75 (44mm) high frequency horn processing compressor
Connection: 2×Speakon NL4 Net weight: 23.5kg
Case size: height 575mm × width 385mm × depth 430mm
Entertainment Series

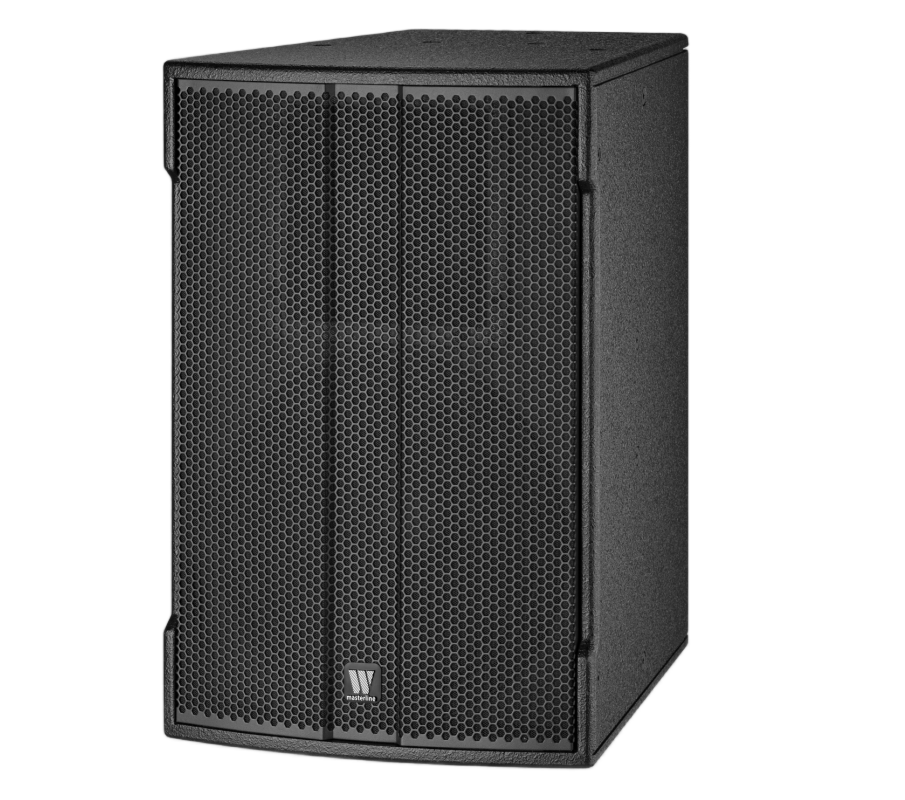

-LAMPOW3
Two-way 13.5 “full range speaker 13.5”
Rated power: 675W (AES), peak power: 2700W (peak)
Frequency response; 52Hz-18KHz impedance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Sensitivity (1W/1M): 139dB
Peak maximum sound pressure level: 135dB
Unit configuration: 1× 13.5″ bass + 1× 3 (75mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 30kg
Case size: height 700mm × width 430mm × depth 430mm
Entertainment Series
-PF10
Two-way 10 “full range speaker 10”
Rated power: 200W (AES), peak power 800W (peak)
Frequency response: 66Hz-19KHz
Resistance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Sensitivity: 98dB
Peak maximum sound pressure level: 128dB
Unit configuration: 1×10 “bass (Low) + 1×1.4” (36mm) tweeter horn processing compressor
Connect: 2×Speakon NL4 Net weight: 15kg
Case size: height 503mm × width 305mm × depth 321mm
Entertainment Series

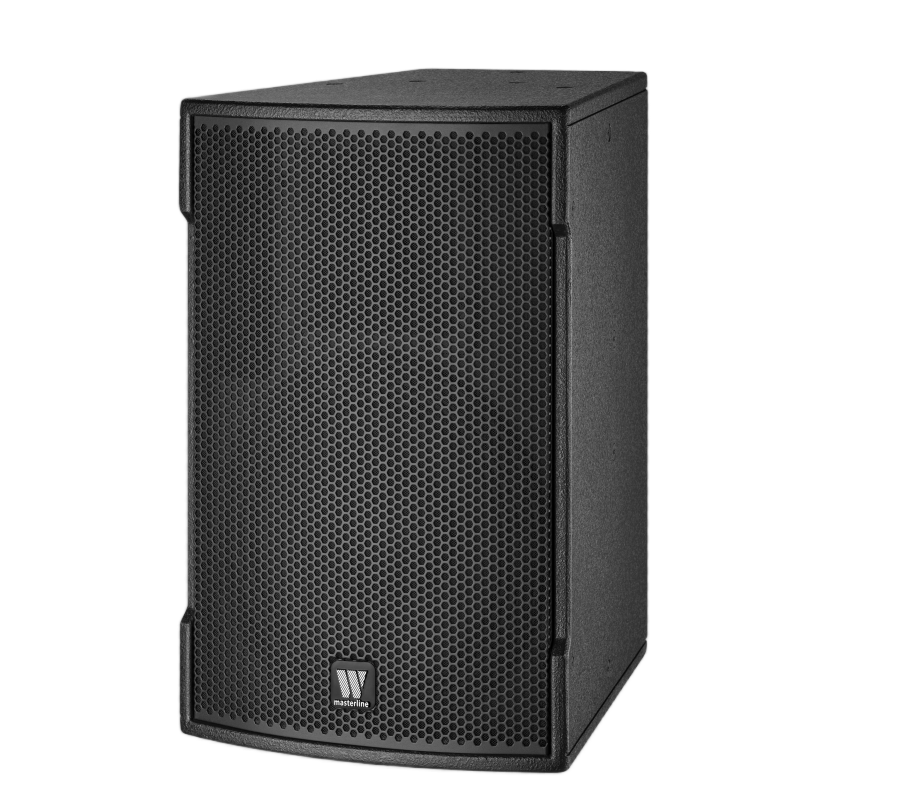

-PF12
Two-way 12 “full range speaker 12”
Rated power: 400W (AES)
Peak power: 1600W (peak)
Frequency response: 50Hz-20KHz
Resistance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Sensitivity (1W/1M): 97dB
Peak maximum sound pressure level: 131dB
Unit configuration: 1×12″ bass + 1×1.75 (44mm) high-frequency horn processing compressor T
Connect: 2×Speakon NL4 Net weight: 19kg
Case size: height 555mm × width 375mm × depth 400mm
Entertainment Series

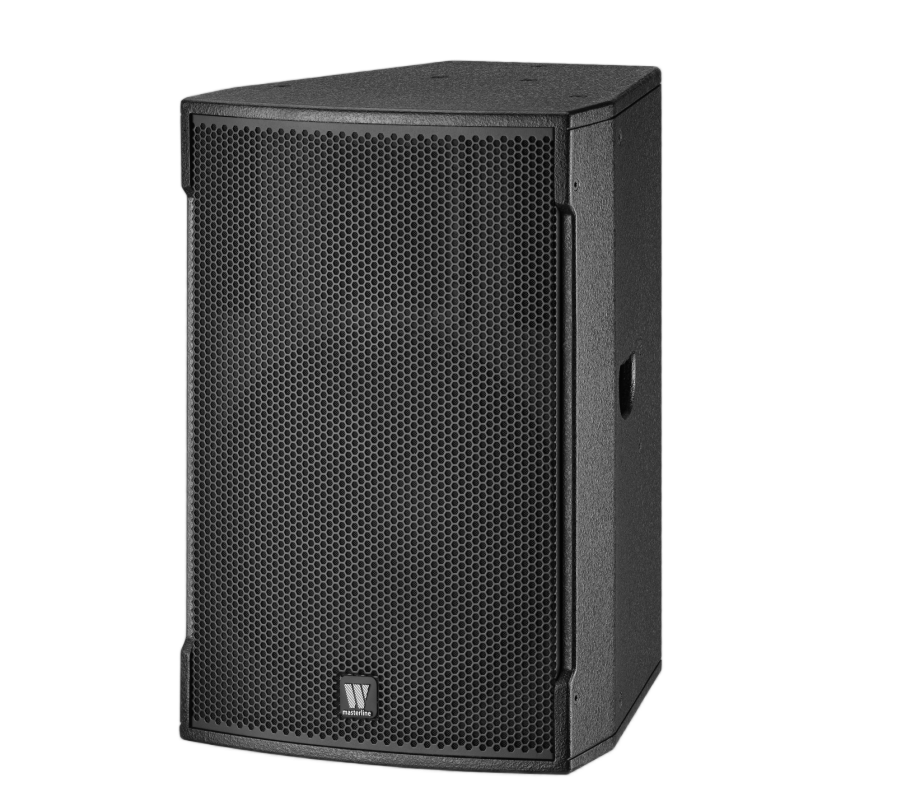

-PF15
Two-way 15 “full range speaker 15”
Rated power: 450W (AES)
Peak power: 1800W (peak)
Frequency response: 50Hz-18KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×50 <H×V>
Sensitivity (1W/1M): 99dB
Peak maximum sound pressure level: 130dB
Unit configuration: 1× 15″ bass + 1× 1.75 (44mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Weight/: 24kg
Case size: height 634.5mm width 425.5mm depth 417mm
Entertainment Series

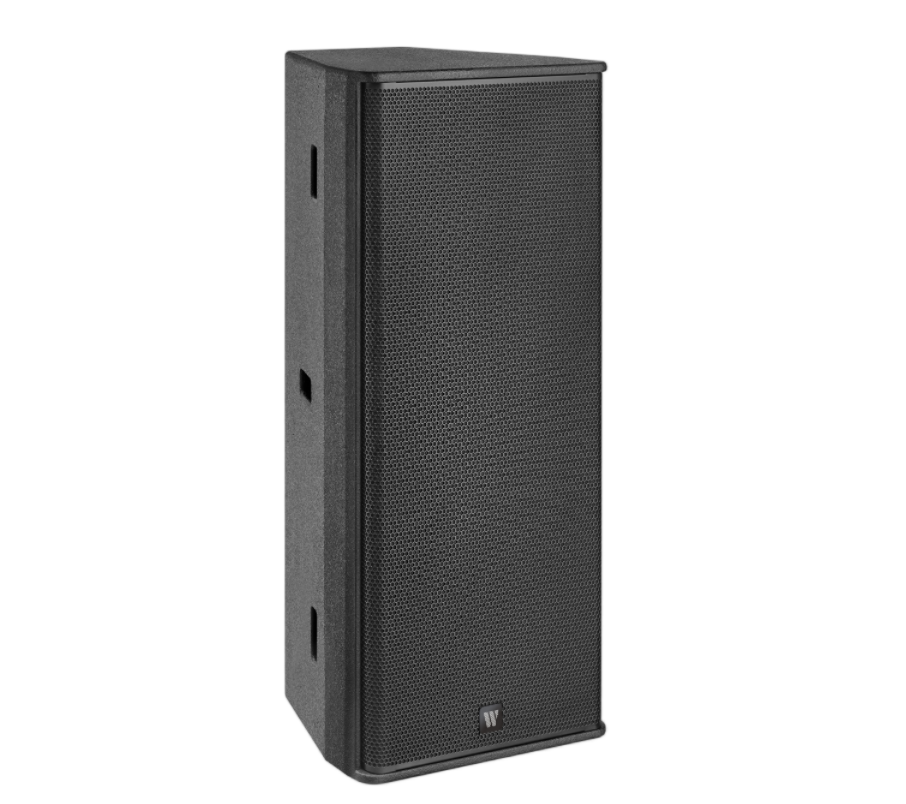

-PF215
Two-way dual 15 “full range speaker 15”
Rated power: 1000W (AES)
Peak power: 4000W (peak)
Frequency response: 50Hz-18KHz
Resistance: 4Ω
Projection Angle (rotatable: 90×50 <H×V>
Sensitivity (1W/1M): 103dB
Peak maximum sound pressure level: 137dB
Unit configuration: 2× 15 “bass + 1× 3” (75mm) “high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 57kg
Case size: height 1202mm × width 524mm × depth 505mm
Entertainment Series

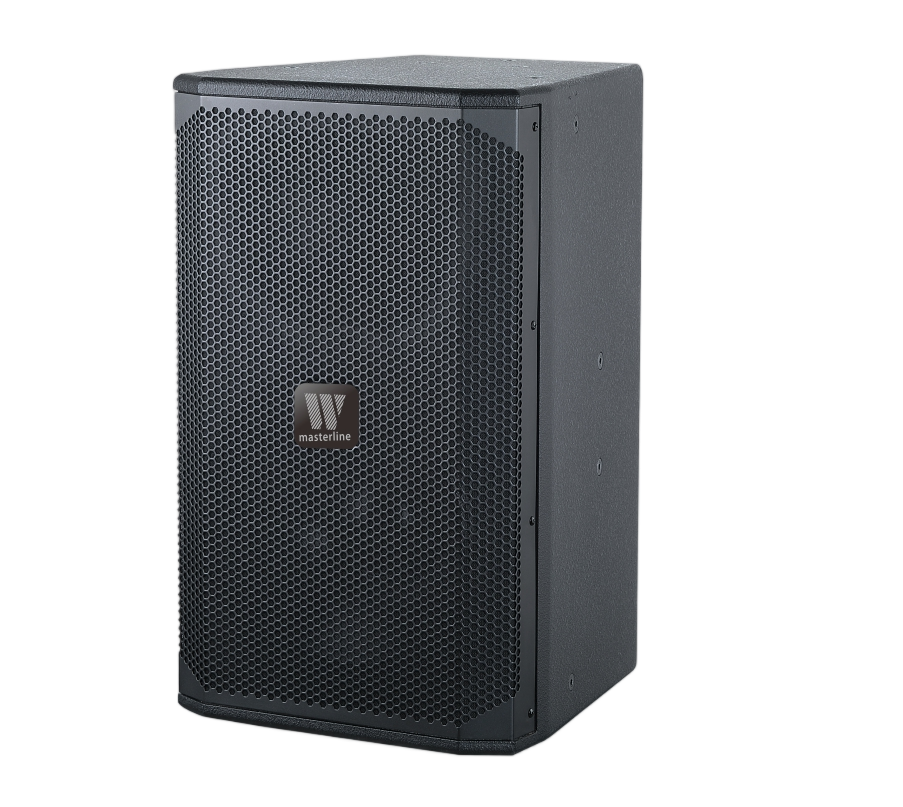

-V10
Technical specifications of 10 inch rear speaker
Type: two-way full frequency rear inverted double kidney speaker
Drivers: 10-inch bass with 156-coil, 65-core voice coil; 90-coil, 34-core tweeter
Frequency response: 55Hz-20kHz ±3DB
Rated power: 250w
Maximum power: 500w
Sensitivity: 95dB
Resistance: 8Ω
Size (W×D×H): 300*340*535MM
Net weight 16kg
Entertainment Series
-V12
Technical specifications of 12 inch rear inverted speaker
Type: two-band full-frequency rear inverted double-kidney speaker (medium fiberboard box)
Drivers: 12-inch bass with 190 magnetic 75-core voice coil and 100 magnetic 44-core tweeter
Frequency response: 50Hz-20kHz ±3DB
Rated power: 400w
Maximum power: 800w
Sensitivity: 96dB
Resistance: 8Ω
Size (W×D×H): 360*385*595MM
Lift: 22kg
Entertainment Series
-Raptor1
10 inch full range speaker
Two-way 10 “full range speaker 10”
Rated power: 300W (AES)
Peak power: 1200W (peak)
Frequency response; 68Hz-18KHz impedance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Characteristic sensitivity: 97dB
Designated effective band sound pressure level (1M):127.6dB
Unit configuration: 1×10″ bass + 1×1.4 (36mm) high-frequency horn processing compressor T
Connection: 2×Speakon NL4 Net weight: 18.6kg
Case size: height 560mm × width 325mm × depth 410mm
Entertainment Series
-Raptor2
12 inch full range speaker
Two-way 12 “full range speaker 12”
Rated power: 450W (AES)
Peak power: 1800W (peak)
Frequency response: 50Hz-18KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×50 <H×V>
Sensitivity (1W/1M): 102dB
Peak maximum sound pressure level: 130dB
Unit configuration: 1× 12″ bass + 1× 1.75 (44mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 24kg
Case size: height 640mm × width 375mm × depth 465mm
Entertainment Series
-Raptor3
13.5 inch full range speaker
Two-way 13.5 “full range speaker 13.5”
Rated power: 575W (AES)
Peak power: 2300W (peak)
Frequency response: 52Hz-18KHz
Resistance: 8Ω
Projection Angle (rotatable): 90×50 <H×V>
Sensitivity: 108dB
Peak maximum sound pressure level: 130dB
Unit configuration: 1× 13.5″ bass + 1× 3 (75mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 30kg
Case size: height 668mm × width 408mm × depth 506mm
Entertainment Series

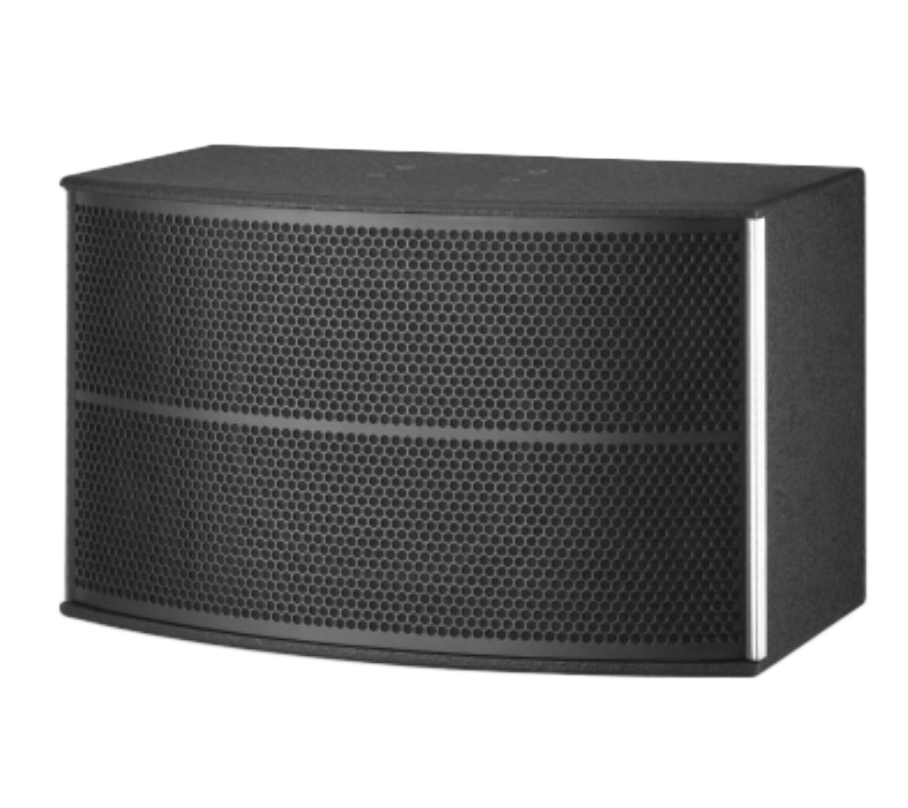

-OK10B
Technical specifications of 10 inch rear speaker
Type: two-way full frequency rear inverted speaker
Driver: 10-inch bass 140mm 63-core voice coil
High pitch 55 magnetic 14 core
Frequency response: 35Hz-18kHz ±3DB
Rated power: 150w
Maximum power: 300w
Sensitivity: 92dB
Resistance: 8Ω
