Coaxial Series
Coaxial Series
-M1
Two-way 10″ coaxial full range speaker
Rated power: 300W (AES)
Peak power: 1200W (peak)
Frequency response: 65Hz-17.4KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×80 <H×V>
Sensitivity: (1W/1M) 132dB
Peak maximum sound pressure level P: 134dB
Unit configuration: 1×10 “(50mm) bass Low + 1×1.5” (34mm)
Connect: 2×Speakon NL4 net weightNet:10.7kg
Box size (width × height × depth): 372×383×262mm

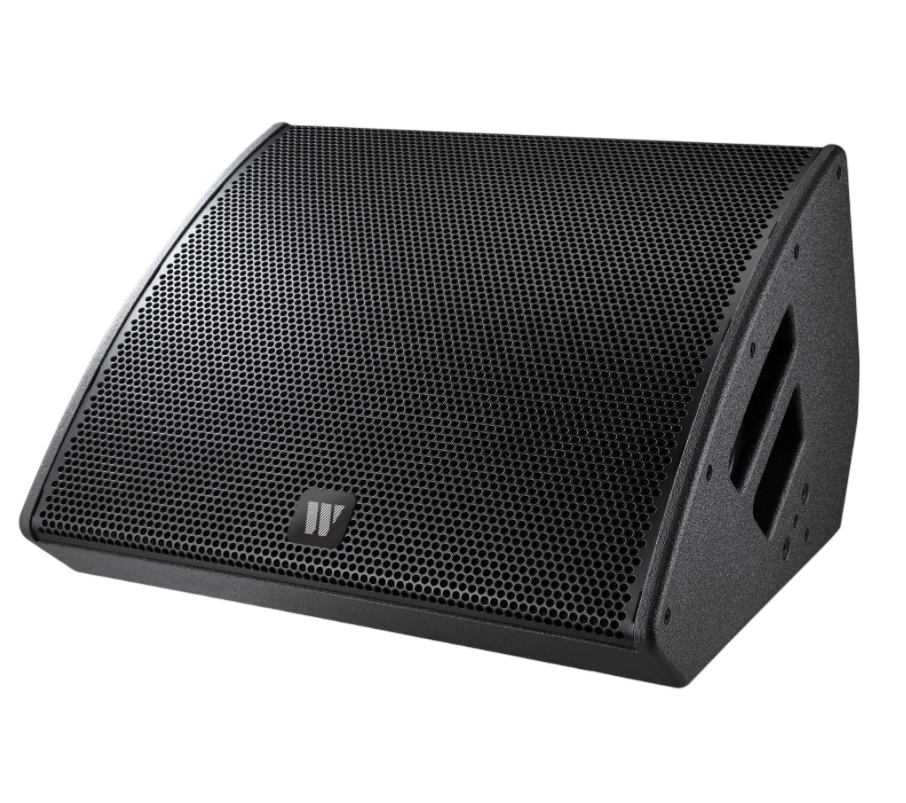

Coaxial Series
-M2
Two-way 12″ coaxial full range speaker
Rated power: 400W (AES)
Peak power: 1600W (peak)
Frequency response: 65Hz-18KHz
Resistance: 8Ω
Projection Angle (rotatable): 80×80 <H×V>
Sensitivity (1W/1M): 99dB
Maximum loudness class (1M): 122dB
Unit configuration: 1×12 “(65mm) bass Low + 1×1.75” (44mm)
Connect: 2×Speakon NL4 Net weight: 17.5kg
Box size (width × height × depth): 432×481×304mm
Coaxial Series
-M4
Two-way 15″ coaxial full range speaker
Rated power: 450W (AES)
Peak power: 1800W (peak)
Frequency response: 66Hz-17.4KHz
Resistance: 8Ω
Projection Angle (rotatable): 50×70 <H×V>
Sensitivity (1W/1M): 103dB
Loudest loudness class: 132dB
Unit configuration: 1× 15″ bass + 1× 3 (75mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight Net:22.7kg
Box size (width × height × depth): 520×580×361mm
Coaxial Series
-X8
Two-way 8″ coaxial full range speaker
Rated power: 150W (AES)
Peak power: 600W (peak)
Frequency response: 60Hz-20KHz impedance: 8Ω
Projection Angle: 100×100 <H×V>
Sensitivity (1W/1M): 99dB
Maximum loudness class (1M): 129dB
Unit configuration: 1×8 “bass + 1×1.5” (35mm) high-frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight (kg): 23kg
Box size (width x height x depth): 424×264× depth 250mm

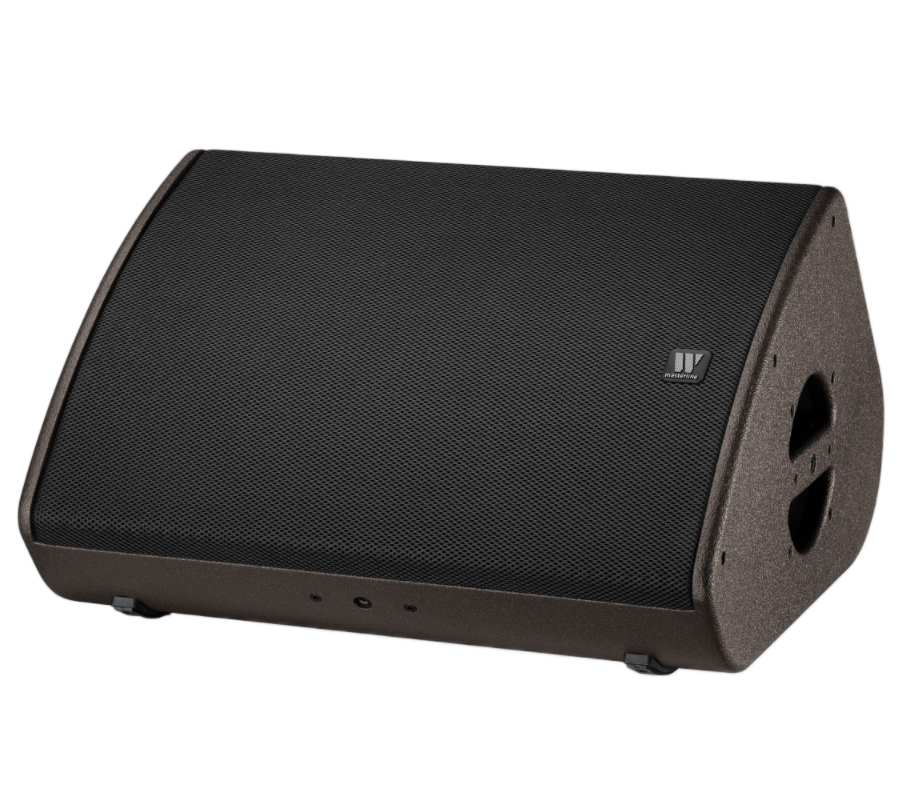

Coaxial Series
-X12
Two-way 12″ coaxial full range speaker
Rated power: 450W (AES)
Peak power: 1800W (peak)
Frequency response: 59Hz-20KHz
Resistance: 8Ω
Projection Angle (rotatable): 90×60 <H×V>
Sensitivity (1W/1M): 102dB
Loudest loudness class: 134dB
Unit configuration: 1× 12″ bass + 1× 3 (75mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight (kg): 20kg
Box size (width x height x depth): 430×496×375mm
Coaxial Series
-X15
Two-way 15″ coaxial full range speaker
Rated power: 550W (AES)
Peak power: 2200W (peak)
Frequency response: 55Hz-20KHz
Resistance: 8Ω
Projection Angle (rotatable): 60×40 <H×V>
Sensitivity (1W/1M): 103dB
Loudest loudness class: 132dB
Unit configuration: 1× 15″ bass + 1× 3 (75mm) high frequency horn processing compressor
Connect: 2×Speakon NL4 Net weight: 21kg
Case size (width x height x depth): 430×580×375mm
Coaxial Series
-D10
Frequency response: 42 Hz-20 kHz (−6 dB)
Acceptance power (AES): 450W
Peak power rating: 1800 W
Sensitivity 1W / 1m:95 dB
Maximum loudness (peak): 128 dB
Coverage Angle: 90 symmetric
Low frequency unit: 10-inch ultra-low distortion low frequency unit 2.5 inches (64 mm), 450 W (AES)
Medium/High Frequency Unit: Ring-shaped diaphragm compression driver with 1.75-inch (44.4mm) voice coil and 80W (AES)
Frequency division: 1 kHz passive
Rated impedance: 4 Ω (+1 / -1)
Input connector: 1 x Neutrik™ NL4MP
Suspended fittings: 10 x M6 threaded holes
Case material: Baltic birch
Case appearance: polyurea coating (waterproof)
Dimensions (width x height x depth): 284 x 486 x 338 mm
Dry weight: 14 kg

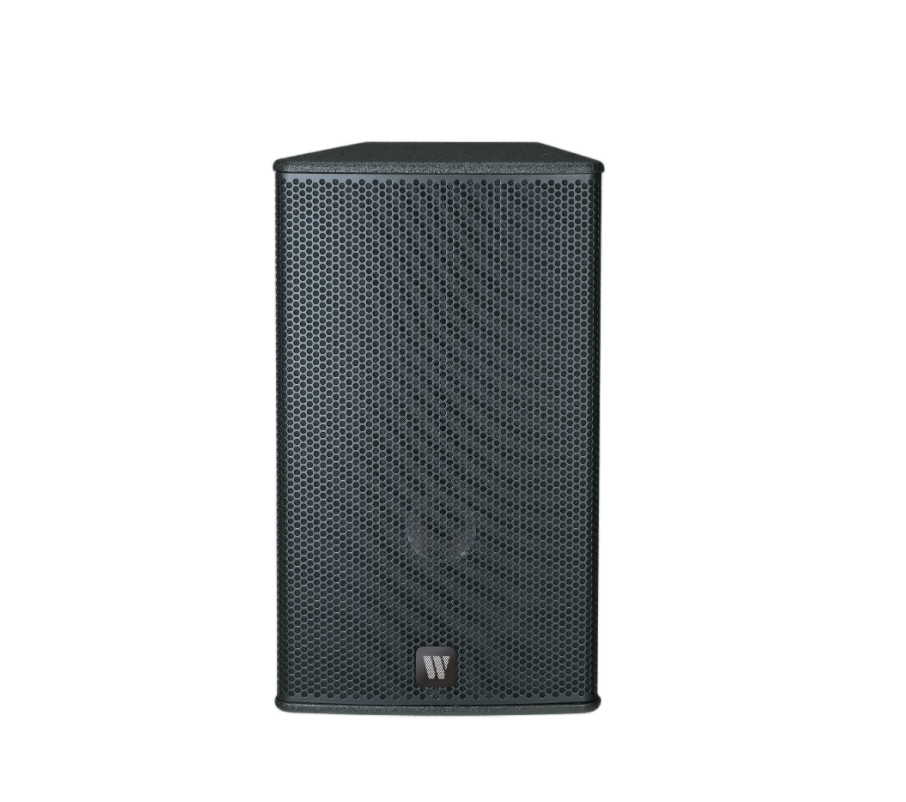

Coaxial Series
-D16
Frequency response: 40 Hz-20 kHz (-6 dB)
Acceptance power (AES): 700 W
Peak power: 2800 W
Sensitivity 1W / 1m:97dB
Maximum loudness (peak): 131 dB
Coverage Angle: 90 symmetric
Low Frequency Unit: 12-inch ultra-low distortion low frequency unit 3 inches (77 mm), 700 (AES)
Medium/High Frequency Unit: Ring-shaped diaphragm compression driver with 1.75-inch (44.4mm) voice coil and 80W (AES)
Frequency division point: 1 kHz passive
Rated impedance: 8Ω (+1 / -1)
Input interface: 1 x Neutrik NL4MP
Hanging accessories: 10 x M6 threaded holes
Case material: Birch plywood
Can body paint: polyurea coating (waterproof)
Case dimensions (width x height x depth): 345 x 583 x 408 mm
Dry weight: 19 kg

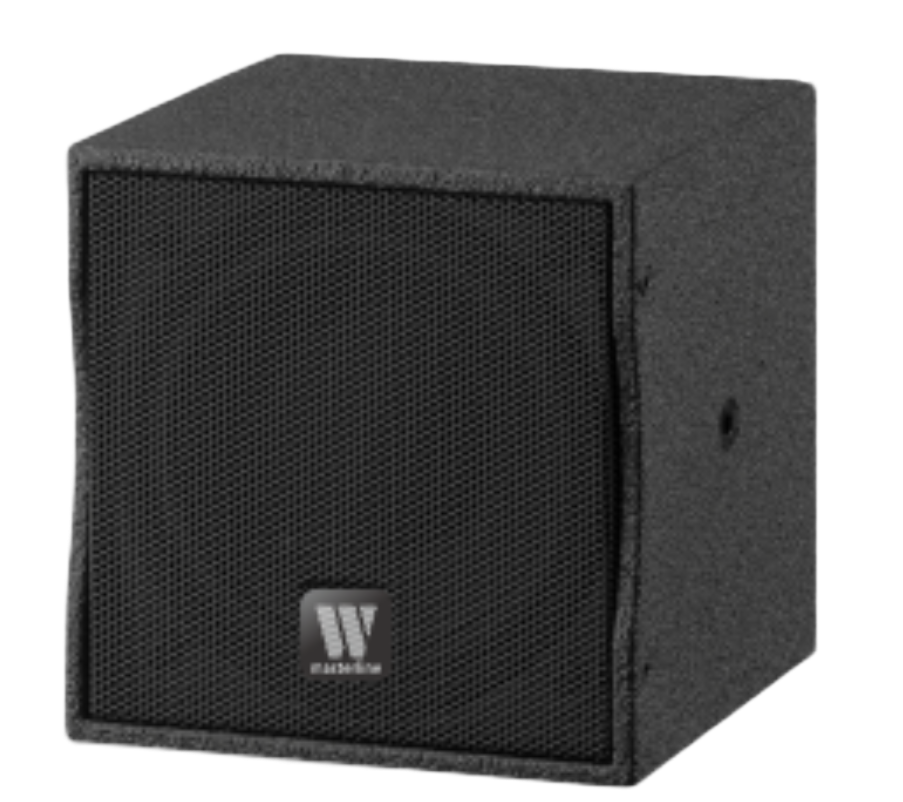

Coaxial Series
-LX4
Type: point light source
Transducer: LF 4 “NdHf 1.4” compression driver
Frequency response: 120 Hz-20 kHz (-3 dB) 65Hz-20 kHz (-10dB)
Maximum SPL: 110/116dB
Peak coverage: H110 | V. 110
Power handling: 70 W
Nominal impedance: 16Ω
Connector: 2×2 point screw terminals
Size (width × height × depth): 118× 118× 102 mm
Material multi-layer boring
Weight: 28kg

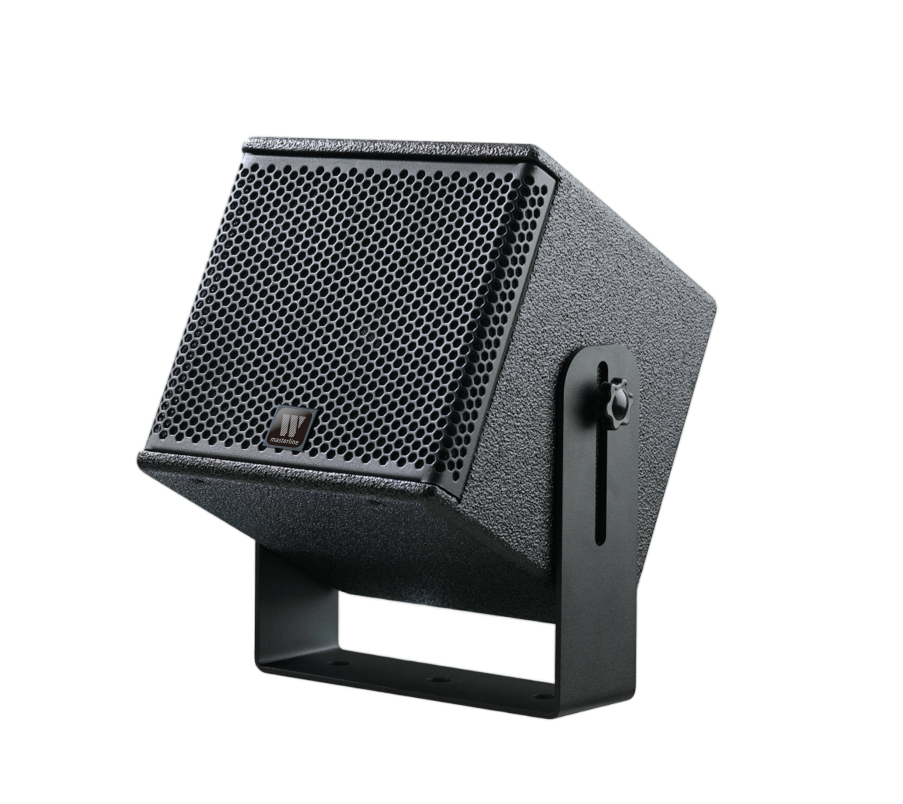

Coaxial Series
-CX5
Two-way 5.5″ coaxial full range speaker
Rated power: 120W (AES)
Peak power: 480W (peak)
Frequency range: 90Hz-19KHz impedance: 8Ω
Projection Angle (rotatable): 110×110 <H×V>
Sensitivity (1W/1M): 108dB
Loudest loudness class: 121dB
Unit configuration: 1×5.5″ bass (Low) + 1×1.4 (36mm) tweeter horn processing compressor
Connect: 2×Speakon NL4 Net weight: 3.8kg
Box size (width × height × depth): 168×168×168mm

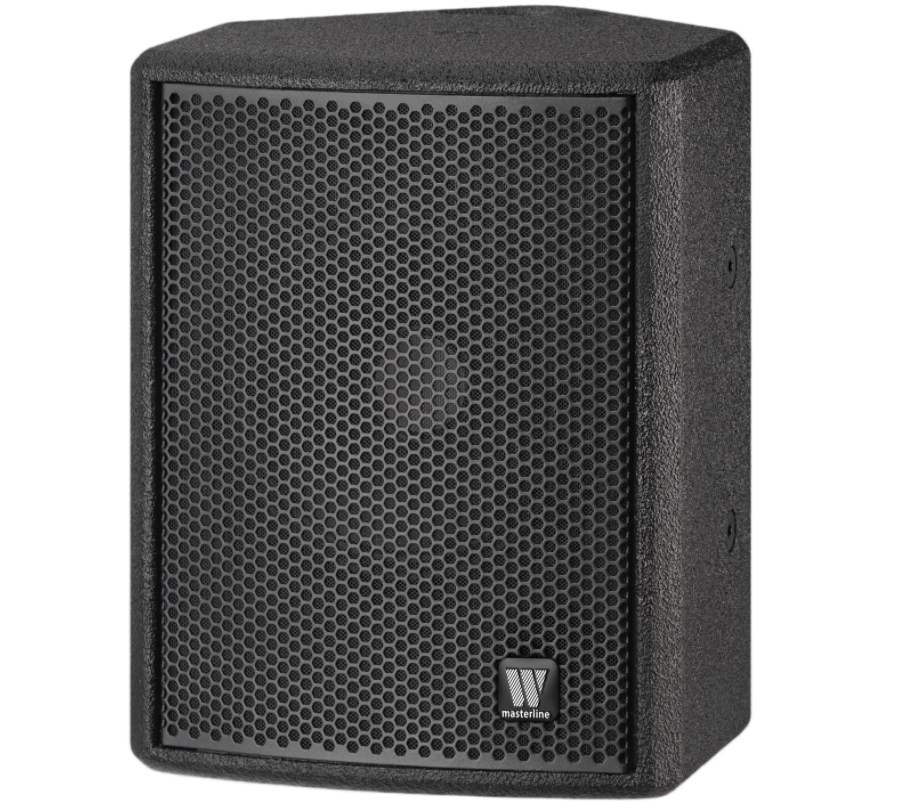

Coaxial Series
-CX6
Two-way 6.5″ coaxial full range speaker
Rated power: 150W (AES)
Peak power: 600W (peak)
Frequency response: 106Hz-20KHz impedance: 8Ω
Projection Angle: 80×80 <H×V>
Sensitivity: 99dB
Loudest loudness class (1M):124.8dB
Unit configuration: 1×6.5 “bass (Low) + 1×1.4” (36mm) tweeter horn processing compressor
Connect: 2×Speakon NL4 Net weight: 23kg
Case size (width × height × depth): 280×220×218.5mm

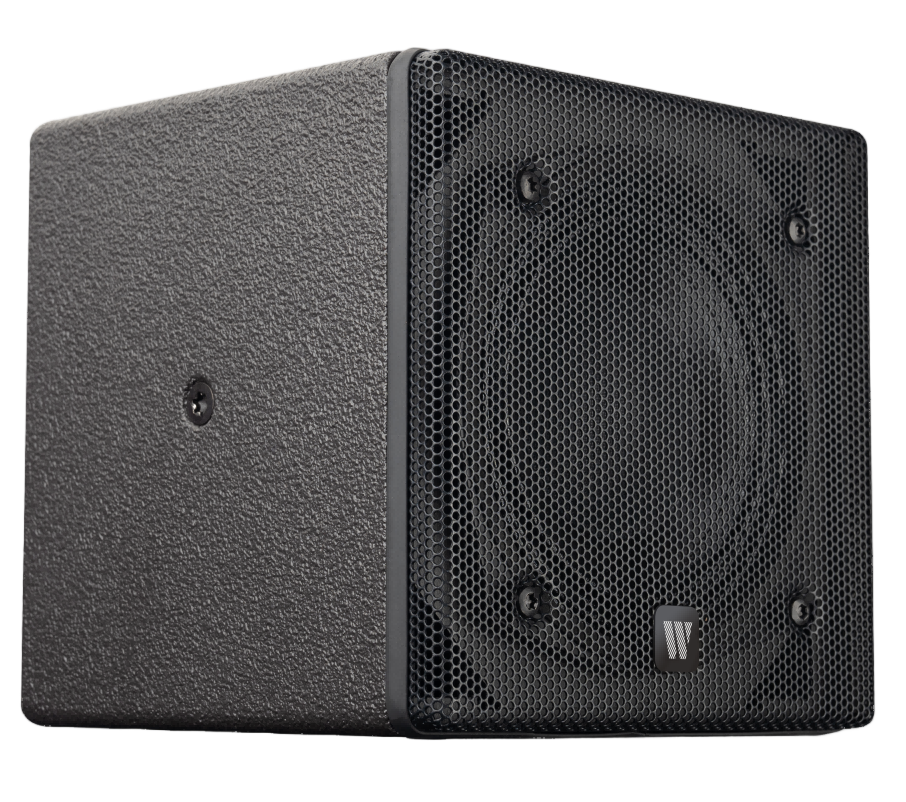

Coaxial Series
-5XT
Type: Point sound source
Transducer: 4-inch neodymium magnet for low frequency, 1-inch compression driver for high frequency
Frequency response: 95 Hz-20 kHz (-3 dB), 65 Hz-20 kHz (-10 dB)
Maximum loudness rating: 121/116 dB peak
Coverage Angle: 110 degrees horizontal, 110 degrees vertical
Power handling: 70 watts
Nominal impedance: 16 ohms
Terminal: 2 double point screw terminals
Size (width × height × depth): 165× 165× 165mm
Material: multi-layer plate
Weight: 3.5KG
